Features:

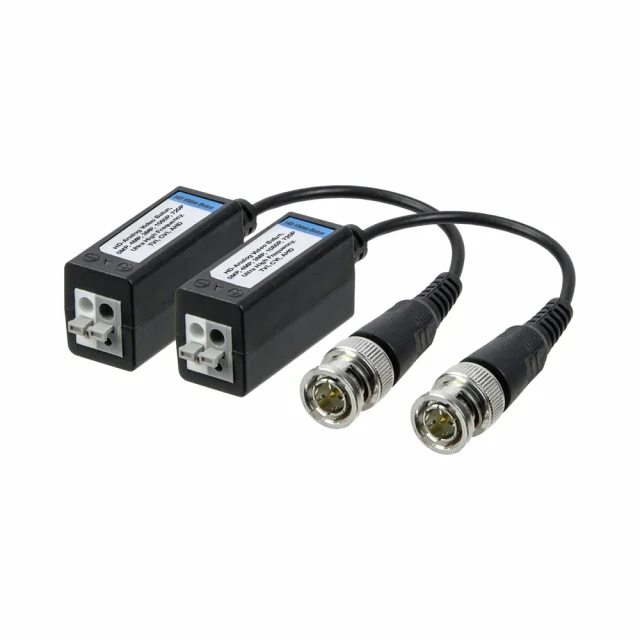

- 1 CH passive HD Hybrid balun up to 820 ft. on HD-TVI, HD-CVI, AHD (Up to 5MP), and Analog cameras
- Push-in terminal connection
- Transmits HD and analog video over twisted pair (Cat5E/6E)
- Plug-and-play solution
- Ultra high frequency with built-in TVS for surge protection
- Exceptional interference rejection with anti-static design
- TVI cameras only require one pair of UTP wire connection
Technical Details
| Transmission Signal | 1 Channel |
| Transmission Distance | HD-TVI / HD-CVI / AHD Up to 250m (820ft) |
| Category Type | UTP CAT5 / 5E / 6 |
| Coaxial Video Connector | BNC-M |
| Twisted-Pair Video Connector | Push-Terminal |
| Compatible Format | HD-TVI / HD-CVI / AHD / ANALOG (MAGIC) |
| Resolution | Up to 5MP HD for All Video Formats |
| Anti-Interference | >60db |
| TVS | Built in TVS for Surge Protection |
| Coaxial Cable Connector | 2KV (common-code) Per: IEC1000-4-5 |
| UTP Cable Connector | 2KV (different-code), 4KV (common-code) Per: IEC1000-4-5 |
