Features:
- TVI Solution
- 1/2.8″ Megapixel Sensor
- 0.15″ (3.7 mm) MP Pinhole Lens (ICR)
- Video Output: HD 1080P at 30fps / 25fps
- Support UTC Function to Remote Control OSD Menu
- Dual Video-Out (HD-TVI / Analog)
- DC 12V

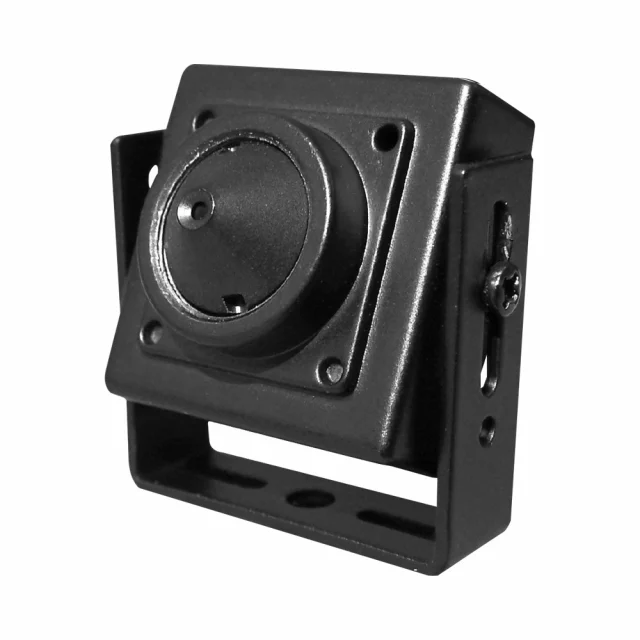

The Avycon AVC-MT91FT Camera is a 2.1MP HD-TVI Pinhole Lens Mini Square Board Camera. This Camera includes a 3.7 mm Pinhole Lens. Also standard with this series is the ability to control OSD Menu remotely, along with a dual Video-out for HD-TVI / Analog.
Dimensions:
Technical Details
| Image Sensor | 1/2.8″ Megapixel Sensor |
| Image Resolution | 1920 x 1080 |
| Scanning System | 2.1 Megapixels |
| Video Output | 1 HD-TVI Output / 1.0Vp-p 75Ω |
| S/N Ratio | More than 50dB |
| Auto Gain Control (AGC) | Off |
| Lens | 0.15″ (3.7 mm) MP Pinhole Lens (ICR) |
| Electronic Shutter | 1/25 ~ 1/50000s |
| Backlight Compensation (BLC) | Yes |
| White Balance | ATW |
| Day and Night | True |
| Privacy Masking | Off |
| DNR | Auto |
| BLC | Yes |
| Sens-Up | N/A |
| Motion Detection | N/A |
| WDR | True |
| IR Led | N/A |
| Input Voltage | DC 12v (±10%) |
| Power Consumption | 80mA (Max.) |
| Operating Environment | -4°F ~ 140°F (-20°C ~ 60°C) / 10% ~ 90% Relative Humidity |
| Storage Environment | -4°F ~ 140°F (-20°C ~ 60°C) / 10% ~ 90% Relative Humidity |
