Features:
- Maximum Resolution: 2160 x 2160
- 6MP (2160 x 2160) Full Real-Time Coding
- 360° Fisheye Lens, Panoramic View, e-PTZ Function
- Smart IR Illumination Up to 100ft.
- True Day/Night ICR Auto Switch
- Hardware Reset
- 3D DNR, Digital WDR, 8 ROI Encoding, HLC & BLC
- Supports PoE (802.3af, <12W)
- Smart Alarm with Motion and Sensor Features
- Supports Local CVBS Video Output and Two-Way Audio
- Built-in Microphone
- Compatible ONVIF Profile Protocol
- Supports Triple Streams
- P2P Remote Connection Function
- Supports Monitoring by Smart Phones, iPad, and Remote Monitoring
- DC12V (±10%) / PoE (802.3af) <12W
- NDAA Compliant

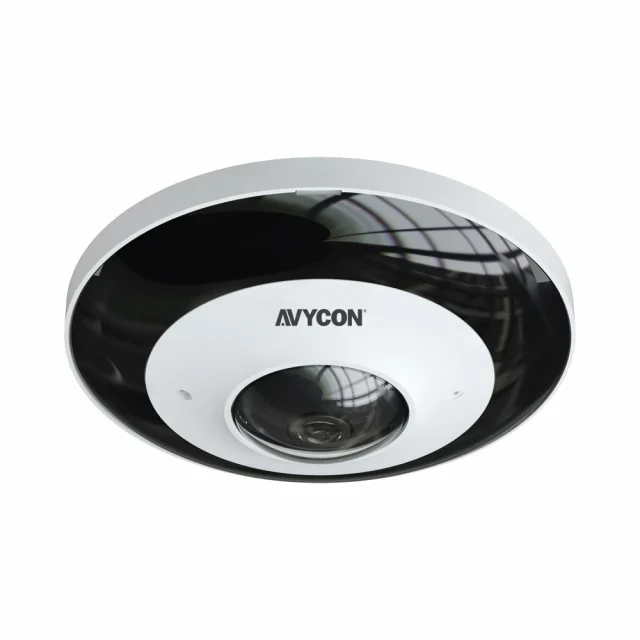

The AVC-PNN61FLT is a 6MP H.265 Weatherproof Fisheye IP Camera with a 360° Fisheye lens that can capture a complete wide panoramic view of the surroundings. With Smart IR Illumination, this camera can view a distance of up to100ft. at night and supports a True day/night mode. Additional Features include Digital WDR capabilities, Region of Interest encoding, and a microSD memory card slot with support up to 128GB for local and Edge recording. The AVC-PNN61FLT supports power by both DC12V and PoE (802.3af) and has an outdoor IP67 rating.
Dimensions:
Technical Details
| Camera | |
| Image Sensor | 1/2.9″ CMOS |
| Resolution | 6MP |
| Image Size | 2160 x 2160 |
| Electronic Shutter | 1/25s to 1/100,000s |
| Lens | 360° Fisheye, Panoramic, e-PTZ Function |
| IR Distance | Up to 100ft. (30m) |
| Slow Shutter | Yes |
| Day and Night | True |
| Wide Dynamic Range | Digital WDR |
| Digital NR | Yes (2D / 3D DNR) |
| Backlight Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Sharpness | Yes |
| ROI | Yes |
| Video Stream | |
| Max. Image Resolution | 2160 x 2160 |
| Supported Resolutions | Fisheye + Panorama + 3 PTZ Mode: (2160 x 2160, 1920 x 1920, 1440 x 1440) at 30fps / (1920 x 1080) at 30fps / (960 x 540) at 30fps x 3 Fisheye + 4 PTZ Mode: (2160 x 2160, 1920 x 1920, 1440 x 1440) at 30fps / (960 x 540) at 30fps x 4 |
| Video Compression | H.265 / H.264 / MJPEG |
| Video Bit Rate | 128Kbps ~ 16Mbps (CBR / VBR Adjustable) |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. (Adjustable through Software or Browser) |
| Network | |
| Ethernet | 1 x RJ45 10M / 100M Ethernet Port |
| Network Storage | Network Remote Storage |
| Remote Monitoring | Web Browser Interface, Avycon CVMS / CVMS 2.0 |
| Online Connections | Supports Up to 10 Concurrent Users |
| Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS |
| Audio | |
| Audio Compression | G.711A / U |
| Audio Bit-Rate | 8Kbps ~ 48Kbps |
| Audio I/O | 1CH audio input; 1CH audio output; 1CH built-in MIC |
| System | |
| Alarm | Yes |
| Alarm I/O | 1 / 1 |
| Local Storage | Built-in Micro SD Card Slot; Up to 128 GB |
| Smart Alarm | Motion Alarm, Sensor Alarm |
| PoE | Yes (802.3af, <12W |
| General | |
| Supported Protocols | ONVIF |
| Input Voltage | DC 12V(±10%) / PoE(802.3af) |
| Power Consumption | <12W |
| Ingress Protection | IP67 |
| Working Environment | -22°~122° F (-30°~50° C) |
| Working Humidity | 10~90% (Non-Condensing) |
| Weight | 0.95lbs |
| Dimensions | D5.11″ x 1.61″ (D130.0mm x 41mm) |
