Features:
- Support remote configuration by WEB client
- Seamless integration with Avycon and ONVIF PTZ’s
- Support multi-language operation
- Support PTZ mode and plat Form mode, up to 256-speed domes controllable in PTZ mode
- Support the Playback control of TV wall client
- Support macro setup and calling
- Support linked display window, PIP, roaming control
Technical Details
| Description | |

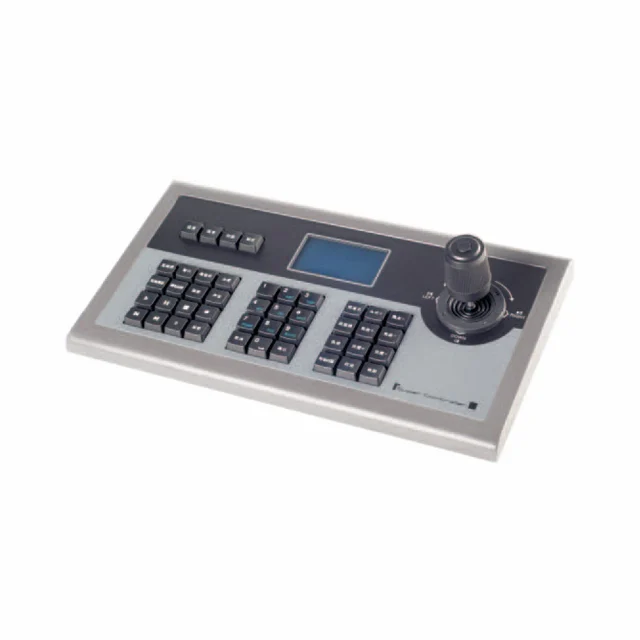

| Model | AVK-N1100 |
| Control Mode | PTZ Mode and Plat Form Mode |
| Control Device | Avycon PTZ Cameras |
| Supported Camera Models | Avycon Plug and Play Cameras | Specialty PTZ Cameras |
| LCD Screen | 58X44 (2.8″) Blue Screen |
| Joystick | Four-Dimensional Rocker |
| Network | |
| Interface | IPV4, HTTP, TCP, MSSP |
| Network Interface | 1 RJ45 100M/1000M Adaptive Ethernet Port |
| Serial Interface | Two Standard Serial Ports: RS485 x 1, RS232 x 1 |
| General | |
| Working Environment | Temperature: -10°C~60°C/Humidity: 10%~90% |
| Power Supply | PoE (802.3af) / DC 12V 2A |
| Power Consumption | 8W MAX |
| Weight | 6.17Ibs (2.8kg) |
| Dimensions | 16.5″ (W) x 10.2″ (D) x 6.7″ (H) (420 mmx260 mmx170 mm) |
