Features:
- TouchPad Mouse
- Controls up to 255 Cameras
- Multiple Protocol Supported in each Channel
- Low Energy Consuming Keyboard
- RS-485 / RS-422 Communication
- Programmable User Preferences (Preset, Tour, Group, etc.)
- Built-in 3-Axis Proportional Joystick
- Easy Upload of Programmed Data via Serial Communication
- Built-in 2 Lines Character LCD
- User Password Support
- Programmable Transmission Speed for each ID
- Easy to be Integrated with DVR (Key-Code Value Provided

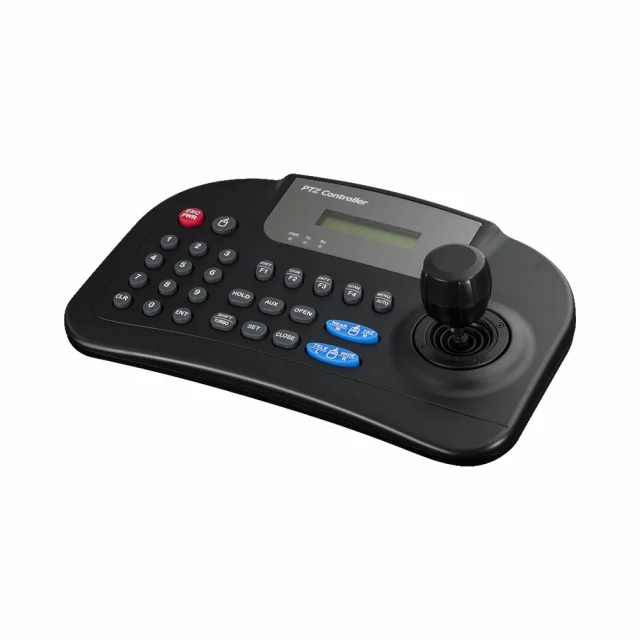

The Avycon AVK-P2500 controls DVR Functions with TouchPad, controls Camera Functions such as Pan, Tilt, Zoom, and Focus, and Sets and Calls Camera Preset Positions. It also activates Pre-Programmed Group Presets, Tour and Pattern Sequences. The LCD is used to display the current status as well as to provide a menu System for setting operational parameters.
Technical Details
| Keyboard Communication |
|
| CO mm. Connector Type | Terminal Block (8p), TX 3 Port, TRX 1 Port |
| Key Button | Rubber Button, Number (10), Function (23), DVR Control (5) |
| Joystick | 3 Axis Pan / Tilt / Zoom Control, Movement Speed Control |
| TouchPad Mouse |
|
| Power Range | 9.5 ~15V DC |
| Power Consumption | DC12V / 150mA |
| Display | Character Type 16 Character x 2 Lines LCD |
| Operation Temperature | 0°C to 45°C |
| Humidity | 10% -70% Non-Condensing |
| Dimensions | 310 x 185 x 100 mm |
