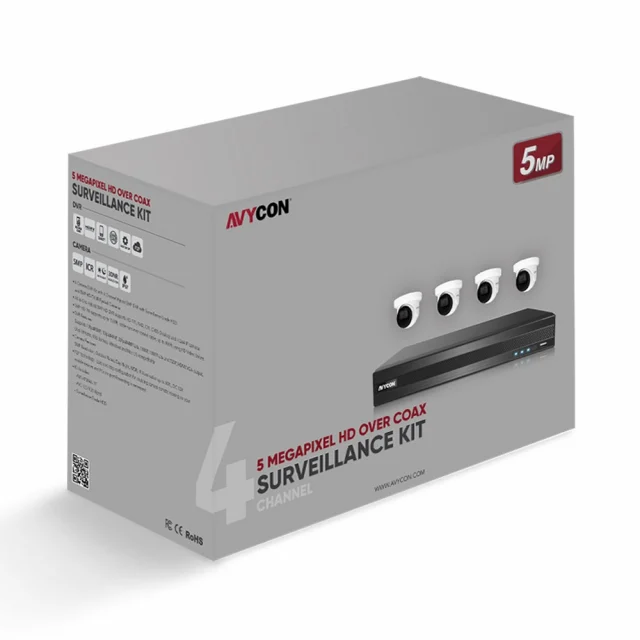

AVK-TE51E4-1T Includes Only:
- 4 CH. HD All-In-One Digital Video Recorder – 1 pcs
- 5MP HD-TVI Fixed Turret Camera – 4 pcs
Features of Video Recorder:
- 5MP Lite / 4MP Lite / 1080P / 960P / 720P / WD1 HD-Analog Input
- Add Up to 2 Additional IP Cameras
- H.265 High Profile Compression for High Megapixel on Low Bit Rate
- 4 Channels Simultaneous Playback
- Intuitive GUI (Graphic User Interface) with Windows Style, Easy Mouse Operation
- Multi-Mode Recording: Manual / Timer / Motion / Sensor
- Various Search Features: Time Slice, Manual, Time, Tag and Event (Motion, Alarm, Sensor)
- One-Touch Flexible Backup via USB and Network
- Pentaplex Operation: Live, Record, Playback, Backup and Remote Access
- DHCP, PPPoE Network Protocol, UPnP Auto Port Forwarding
- Supports Multiple Online Users
- Dual Streaming Technology for High Definition Recording and Smooth Video Transmission
- IP Camera Support up to 5MP
- Multi-User Support with Different User-Level Management
- HDMI & VGA 2K Output for High Definition Resolution Display
- Full Interactive PTZ Function with OSD Menu, Preset, Scan and Tour
- All-in-One Video Management Software for NVR, DVR and IP Cameras
- Professional HD Mobile App for Apple® and Android® Devices
Features of Camera:
- 5MP (2592 x 1944)
- Fixed 2.8 mm Lens
- HD-TVI / CVI / AHD / CVBS (Analog)
- Easy-to-Use DIP Switch to Change Formats
- True Day / Night
- Smart IR Illumination Up to 66ft.
- Digital NR
- Defog
- DWDR
- IP67 Outdoor Rating
- DC 12V (4W Consumption)
- NDAA Compliant
Technical Details
| Video Recorder | |
| Video | |
| Video-Input | 4 Channels (BNC) |
| IP Channel | 2 Additional |
| Output |
|
| HD-Analog Input Resolution |
|
| IP Input Resolution | 5MP / 4MP / 3MP / 1080P / 960P / 720P |
| Video Compression | Standard H.265 |
| Audio | |
| Network Input | 4 Channel IPC Audio Input |
| Local Output | RCA x 1 |
| 2-Way Audio | 1 Channel Audio Input |
| Recording | |
| Resolution | 5MP Lite / 4MP Lite / 1080P / 720P / WD1 |
| Frame Rate Channels |
|
| Frame Rate | 25fps (PAL) / 30fps (NTSC) |
| Bit Rate | 32Kbps ~ 5Mbps |
| Mode | Manual, Timer, Motion, Sensor |
| Playback | |
| Smart Search | Highlight Colors to Display Camera Record in a certain period of time, Different Colors refer to Different Record Events |
| Search | Time slice / Time / Event / Tag Search |
| Function | Play, Pause, Fast Forward, Fast Rewind, Digital Zoom, etc. |
| Simultaneous Playback | Max 16 Channels |
| Alarm | |
| Alarm Input | 4 Channels Local Alarm Input; IPC Alarm Input Supported |
| Alarm Output | 2 Channels |
| Alarm Trigger | Record, Snap, Preset, E-mail, etc. |
| Storage | |
| HDD Interface | SATA x 1, Max 18T per HDD; e-SATA x 1 |
| Backup | |
| Network Backup | Yes |
| Local Backup | USB Flash Drive, USB Mobile HDD |
| Network | |
| Interface | RJ45 10 / 100 Mbps x 1 |
| Protocol | TCP/ IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP |
| External Interface | |
| RS-485 | Yes, Connect to PTZ or Keyboard |
| Remote Controller | Optional |
| USB | USB 2.0 x 1 (Front Panel), USB 2.0 x 1 (Rear Panel) |
| General | |
| Power Supply | DC 12V |
| Power Consumption | ≤12W (Without HDD) |
| Working Environment | 14°~122°F (-10°~50° Celcius) |
| Working Humidity | 10% ~ 90% (Non-Condensing) |
| Dimensions | 11.61″ x 1.65″ x 9.69″ (295 mm x 42 mm x 246 mm) |
| IP Camera | |
| Camera | |
| Image Sensor | 1/2.7″ Progressive Scan Cmos |
| Resolution | 5MP |
| Image Size | 2592 x 1944 |
| Video Output | 1-channel BNC Video Output |
| Image System | PAL / NTSC |
| Electronic Shutter | 1/15s to 1/50,000s |
| IR Distance | Up to 66ft. |
| Video Formats | HD-TVI / AHD / CVI / CVBS (Analog) |
| Frame Rate |
|
| Min. Illumination | 0.05 Lux at F1.2 (AGC ON), 0 Lux with IR ON |
| Lens | Fixed 2.8 mm Lens |
| Lens Mount | M12 |
| S/N Ratio | 40dB |
| Function Control | OSD, Control over Coax (UTC) |
| Image | |
| Day and Night | EXT / Auto / Color / BW (Black and White) |
| Digital WDR | Yes |
| Digital NR | Yes (3D DNR) |
| Auto Gain Control (AGC) | Yes |
| Auto White Balance (AWB) | Yes |
| Backlight Compensation (BLC) | Yes |
| Edge Brightness Compensation | Yes |
| Defog | No |
| HLC | No |
| Sharpness | Yes |
| Mirror Image | Yes |
| Smart IR (Anti-SAT) | Yes |
| Image Setting | Yes |
| Defect Correction | Auto / Manual |
| General | |
| Angle Adjustment | Any Angle |
| Input Voltage | DC 12V (±10%) |
| Power Consumption | Maximum 4W |
| Ingress Protection | IP67 |
| Working Temperature | -22°~131° F (-30°~55° Celcius) |
| Dimensions | 3.92″ x 3.32″ (100.5 mm x 85.2 mm) |
