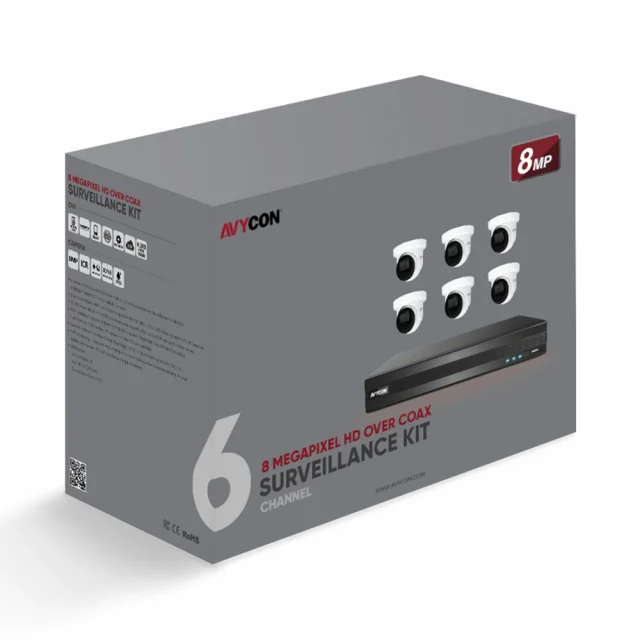

Avycon, AVK-TE81E6-3T, 8MP HD Over Coax Surveillance Kit Video Recorder Cameras with 6 of 8MP TVI Turret Cameras and 8CH DVR with 3TB HDD Pre-Installed, Contains AVC-TE81F28 (6 QTY) and AVR-DSV808H-3T (1 QTY)
AVK-TE81E6-3T Includes Only:
- (1) 8CH HD All-In-One Digital Video Recorder
- (6) 8MP HD-TVI Fixed Turret Camera
Features:
- 8CH Video Recorder
- 8MP / 5MP / 4MP / 3MP / 1080P / 720P / WD1 HD-Analog Input
- Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
- Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
- Multi-mode recording: manual / timer / motion
- Playback : 8 CH simultaneously playback
- Search: time slice, time, event, tag and smart search
- Express and flexible backup via USB, network and so on
- Pentaplex: preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol
- Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
- Authorization management, log review and device status review HDMI 4K output, true high resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phones
- AVYCON / ONVIF® IP Camera Support up to 8MP
- Multi-User Support with Different User Level Management
- HDMI & VGA 2K Output for High Definition Resolution Display
- Full Interactive PTZ Function with OSD Menu, Preset, Scan and Tour
- All-in-One Video Management Software for NVR, DVR and IP Cameras
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
- Turret Cameras
- 8MP (3840×2160)
- HD-TVI / CVI / AHD / CVBS (Analog)
- True Day & Night ICR
- Fixed 2.8mm Lens
- Easy-to-Use DIP Switch to Change Formats
- 2D DNR, 3D DNR, WDR, BLC
- Smart IR Illumination Up to 66ft
- IP67 ingress protection
- DC12V
Technical Details
| 4CH Video Recorder | |
| Video Input (Analog + IP) | Total: 16 CH Analog: 8 CH |
| Output |
|
| HD-Analog Input Resolution |
|
| IP Input Resolution | CVI : 1080P, 720P Real Time 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P |
| Video Compression | Standard H.265 |
| Network Input | 8 Channel IPC Audio Input |
| Local Output | RCA x 1 |
| 2-Way Audio | 1 Channel Audio Input |
| Resolution | 4K / 4K Lite / 5MP / 5MP Lite / 4MP / 4MP Lite / 3MP / 1080P / 720P / WD1 / D1 |
| Frame Rate Channels | 4K at6fps/7fps (PAL/NTSC) |
| Frame Rate |
|
| Bit Rate | 32Kbps ~ 5Mbps |
| Mode | Manual, Timer, Motion, Sensor |
| Smart Search | Highlight Colors to Display Camera Record in a certain period of time, Different Colors refer to Different Record Events |
| Search | Time slice / Time / Event / Tag Search |
| Function | Play, Pause, Fast Forward, Fast Rewind, etc. |
| Simultaneous Playback | Max 16 Channels |
| Alarm Input | 8 Channels Local Alarm Input; IPC Alarm Input Supported |
| Alarm Output | 2 Channels |
| Alarm Trigger | Record, Snap, Preset, E-mail, etc. |
| HDD Interface | SATA x 1, Max 18T per HDD; e-SATA x 1 |
| Network Backup | Yes |
| Local Backup | USB Flash Drive, USB Mobile HDD |
| Interface | RJ45 10 / 100 Mbps x 1 |
| Protocol | TCP/ IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP |
| RS-485 | Yes, Connect to PTZ or Keyboard |
| Remote Controller | Optional |
| USB | USB 2.0 x 1 (Front Panel), USB 2.0 x 1 (Rear Panel) |
| Power Supply | DC 12V |
| Power Consumption | ≤15W (Without HDD) |
| Working Environment | 14°~122°F (-10°~50° Celcius) |
| Working Humidity | 10%~90% (Non-Condensing) |
| Dimensions | 11.61″ x 1.65″ x 9.69″ (295mm x 42mm x 246mm) |
| Turret Cameras | |
| Camera | |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Resolution | 8MP |
| Image Size | 3840×2160 |
| Video Output | 1-channel BNC Video Output |
| Image System | PAL / NTSC |
| Electronic Shutter | 1/15s to 1/50,000s |
| IR Distance | Up to 66ft. |
| Video Formats | HD-TVI / AHD / CVI / CVBS (Analog) |
| Frame Rate |
|
| Min. Illumination | 0.05 lux at F1.2 (AGC ON), 0 lux with IR ON |
| Lens | Fixed 2.8mm Lens |
| Lens Mount | M12 |
| Horizontal Field of View | 105.41° |
| S/N Ratio | 36dB |
| Function Control | OSD, Control over Coax (UTC) |
| Image | |
| Day & Night | EXT / Color / BW (Black and White) |
| WDR | Yes |
| Digital NR | Yes (2D DNR / 3D DNR) |
| Auto Gain Control ( AGC) | Yes |
| Auto White Balance (AWB) | Yes |
| Backlight Compensation (BLC) | Yes |
| Edge Brightness Compensation | Yes |
| Defog | No |
| HLC | No |
| Sharpness | Yes |
| Mirror Image | Yes |
| Smart IR (Anti-SAT) | Yes |
| Image Setting | Yes |
| Defect Correction | Auto / Manual |
| General | |
| Angle Adjustment | Any Angle |
| Input Voltage | DC 12V (±10%) |
| Power Consumption | Maximum 5W |
| Ingress Protection | IP67 |
| Working Environment | -22°~131°F (-30°~55°C) |
| Dimensions | Ø3.93×2.55in (Ø100x65mm) |
