Features:
- Mini-size, wall mounting
- Requires no external power supply
- Low power consumption, only 2W
- Auto-sensing PoE devices
- Compatibility with 802.3af and 802.3at

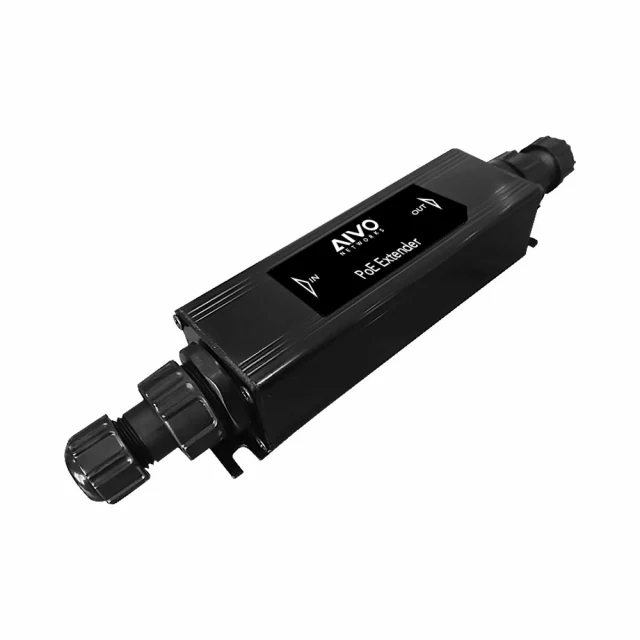

A quality product for PoE Network point-to-point up to 500m. Works with PoE standards IEEE802.3af and IEEE802.3at. This device serves as a data switch port that is powered by PoE and transmits it 100m further together with the data. Depending on the amount of power consumption, it may use up to 4 PoE Extenders in the same chain, thereby increasing transmission distance up to 500 m.
Technical Details
| Number of Channels | 1 |
| Pass-Through Data Rates | 10/100/1000 Mbps half/full-duplex |
| Power over Ethernet Input | Pin Assignment and Polarity: Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+) |
| Power over Ethernet | Pin Assignment and Polarity: 1/2 (-), 3/6 (+) |
| Output | Output Power: up to 22W |
| Connectors | Shielded RJ-45, EIA 568A and 568B |
| Network Cables | Shielded Category 5 (or higher) |
| Dimensions | 140 mm x 40 mm x 30 mm (W x D x H) |
| Mounting | Wall |
| Environment | Outdoor IP65 |
| Environmental Conditions |
|
| Regulatory Compliance |
|
| Electromagnetic | FCC Part15, Class B |
