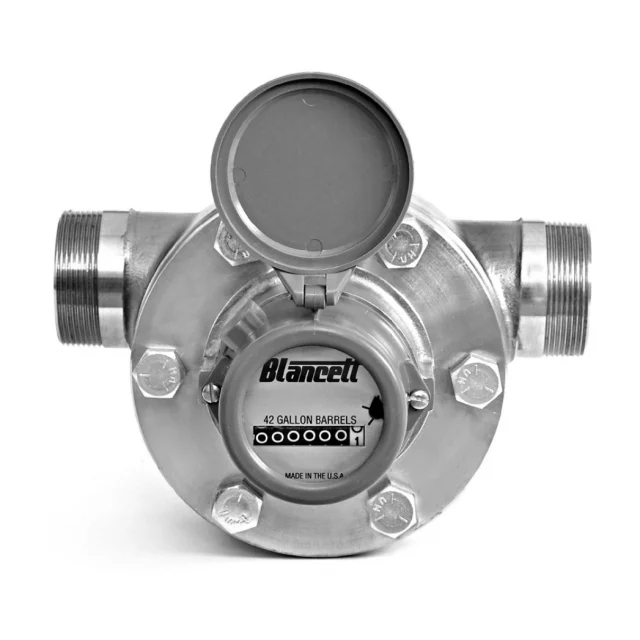

Blancett B090-901 900 Series Positive Water Flood Meter 172-1543 bpd

Blancett, B090-901, 900 Series Positive Displacement Water Flood Meter 172-1543 bpd

Features:

• Interchangeable inlet inserts with three different sized orifices
• Pre-calibrated orifices for specific low, medium, and high meter flow ranges
• Vaned impeller operates at pressures up to 5000 psi
• Two end connections: 2 in. NPT (male) and 1 in. NPT (female)

Blancett 900 Series positive displacement flow meters are designed specifically for the measurement of floodwater line flow in secondary oil recovery operations. Using a time-proven rotary vane mechanism, the 900 Series flow meters provide reliable long-term measurement and totalization with minimum attention and maintenance.

Installation

Install the flow meter with the flow arrow, which is cast on the exterior of the meter body, pointing in the direction of fluid flow.

Operating Principle

Fluid enters the inlet port and passes through the pre-selected orifice into the cylindrical measuring chamber. The flowing fluid is separated into two streams, rotating a vaned impeller at a speed directly proportional to flow rate. The impeller is connected to a meter register through a magnetic drive assembly. Each impeller rotation is mechanically tabulated and displayed by the register atop the meter.

For more information, please see Product Manual

Technical Details
