Features:
- Offers accurate and repeatable flow measurement in ranges from 0.6-5000 gmp (20-171.000 bpd)
- Cost-effective solution for turbine flow meter applications
- Rugged 316 stainless steel construction offers long service life in severe operating environments
- In NPT, BSP, Victaulic®, flange, or hose barbed end connections
- NIST traceable calibration
- Installation in pipe sizes from 1/2…10 in. Can integrate electronically with a Blancett flow monitor
- K-factor Scaler, or the F to I/F to V Intelligent Converter Field replaceable repair kits allow for turbine replacement without loss of accuracy

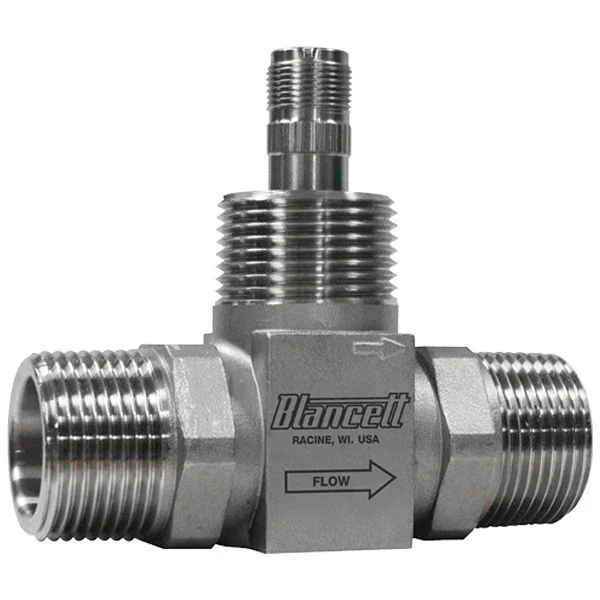

The Model 1100 turbine flow meter is designed to withstand the demands of the most rigorous flow measurement applications. Originally developed for the secondary oil recovery market, the Model 1100 flow meter is an ideal meter for liquid flow measurement on or off the oil field. The meter features a rugged 316 stainless steel housing and rotor support assemblies, CD4MCU stainless steel rotor, and abrasive-resistant tungsten carbide rotor shaft and journal bearings. The Model 1100 maintains measurement accuracy and mechanical integrity in the corrosive and abrasive fluids commonly found in oil field water flood projects and many industrial applications. When paired with a Blancett flow monitor, the Model 1100 turbine meter meets a wide range of measurement requirements. This makes it ideal for applications such as pipelines, production/ injection fields, in-situ mining operations, offshore facilities, and other industrial applications.
Installation
The Model 1100 turbine meter is simple to install and service. It operates in any orientation (horizontal to vertical) as long as the “flow direction” arrow is aligned in the same direction as the actual line flow. For optimum performance, the flow meter should be installed with a minimum of 10 diameters upstream straight pipe length and 5 diameters downstream straight pipe length.
For more information, please see Product Manual
Technical Details
| Bore Size | 3 in. (76.2 mm) |
| End Connection | 3 in. grooved end |
| Max. PSI | 800 |
| Flow Ranges | |
| gpm (lpm) | 60…600 (227.1…2271.2) |
| bpd | 2100…21000 |
| m³/d | 327…3270 |
| Strainer Mesh | 10 |
| Approx. K-factor Pulse/Gal | 57 |
| Meter Weight (lb) | 15 |
| End to End Length | 12.50 in. (317.50 mm) |
| Operating Temperature | -150…350° F (-101…177° C) |
| Pressure Rating | 800 or 5000 psi |
| End Connections |
|
| Turndown Ratio | 10:1 |
| Accuracy |
|
| Repeatability | ±0.1% |
| Calibration | Water (NIST traceable calibration) |
| Materials of Construction | |
| Body | 316 stainless steel |
| Rotor | CD4MCU stainless steel |
| Rotor Shaft | Tungsten carbide |
| Rotor Support | 316 stainless steel |
