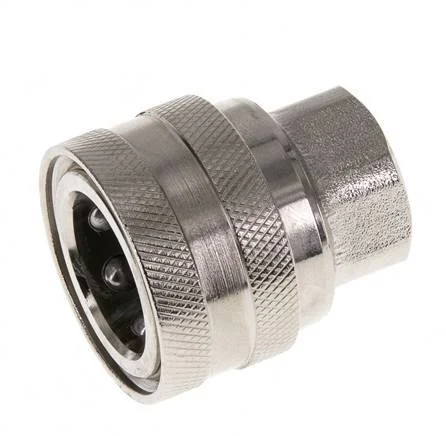

Brass DN 10 Coupling For Washing Machine Socket G 3/8 inch Male Threads

Brass DN 10 coupling for washing machine socket with G 3/8 inch male threads. They are typically used for water lines to quickly connect and disconnect secure connections.

The G 3/8 inch male threads allow for it to be threaded onto a matching female threaded part. The maximum operating pressure is 250 bar (3625 psi). The coupling is suitable for temperatures between 0 to 150 °C (32 to 302 °F). The seal material is FKM. The brass housing has a nickel-plated surface protection.

Note: Plugs and sockets only combine when both are double sided shut-off or when both are standard.

Pros:

• These couplings are suitable for high pressure cleaning guns, like WAP or Karcher.

Specifications

Connection size : 3/8 inch
Nominal diameter (mm) : 10
Connection type : Outer thread cylindrical BSPP-G
Material : Brass
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 250
Min temperature (°C) : 0
Max temperature (°C) : 150
Shape : Coupling (female)
Surface protection : Nickel-plated
With dust cap : No
