Brass DN 10 Hydraulic Coupling Plug 3/8 inch Female NPT Threads ISO 7241-1 B D 19.1mm

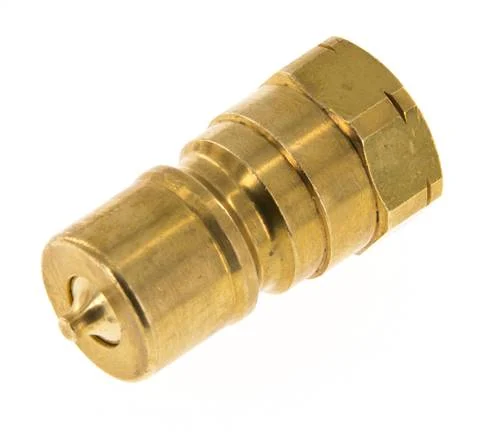

Brass DN 10 hydraulic coupling plug with 3/8 inch female NPT threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The 3/8 inch female NPT threads allow for it to be threaded onto a matching male threaded part. The maximum operating pressure is 200 bar (2900 psi). The coupling is suitable for temperatures between -25 to 160 °C (-13 to 320 °F). The coupling complies with the ISO 7241-1 B standard.

Pros:

• Adheres to ISO 7241-1 B worldwide standard
• They can be combined with other manufacturers, such as Parker, Rectus, Cejn, Stucci, Faster or Snap-Tite
• Brass or stainless steel couplings are suitable for applications with high demand for chemical resistance

Specifications

Connection size : 3/8 inch
Nominal diameter (mm) : 10
Plug diameter : 19.1 mm
Socket diameter : 35 mm
Connection type : Inner thread conical (NPT)
Material : Brass
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 200
Min temperature (°C) : -25
Max temperature (°C) : 160
Standard : ISO 7241-1 B
Shape : Plug (male)
With dust cap : No
