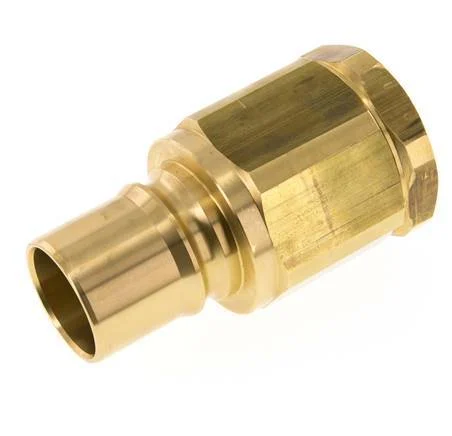

Brass DN 40 Hydraulic Coupling Plug G 1 1/2 inch Female Threads ISO 7241-1 B D 44.5mm

Brass DN 40 hydraulic coupling plug with G 1 1/2 inch female threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The G 1 1/2 inch female threads allow for it to be threaded onto a matching male threaded part. The maximum operating pressure is 100 bar (1450 psi). The coupling is suitable for temperatures between -25 to 160 °C (-13 to 320 °F). The coupling complies with the ISO 7241-1 B standard.

Pros:

• Adheres to ISO 7241-1 B worldwide standard
• They can be combined with other manufacturers, such as Parker, Rectus, Cejn, Stucci, Faster or Snap-Tite
• Brass or stainless steel couplings are suitable for applications with high demand for chemical resistance

Specifications

Connection size : 1 1/2 inch
Nominal diameter (mm) : 40
Plug diameter : 44.5 mm
Socket diameter : 75 mm
Connection type : Inner thread cylindrical BSPP-G
Material : Brass
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 100
Min temperature (°C) : -25
Max temperature (°C) : 160
Standard : ISO 7241-1 B
Shape : Plug (male)
With dust cap : No
