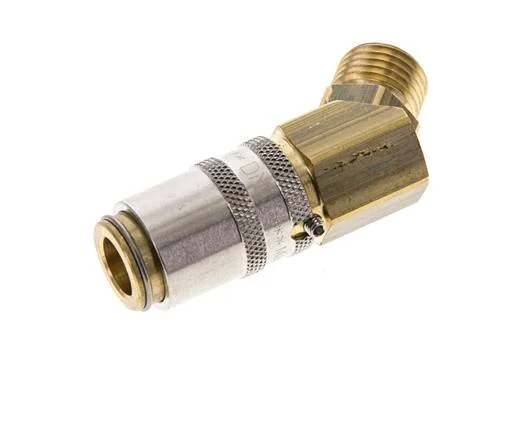

Brass DN 6 Mold Coupling Socket M14x1.5 Male Threads Unlocking Protection 45-deg

Brass DN 6 mold coupling socket with M14x1.5 male threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The M14x1.5 mm male threads allow for it to be threaded onto a matching female threaded part. The socket has a durable ball lock design to prevent any accidental de-coupling. The operating pressure range is 0 to 15 bar (0 to 218 psi). The coupling is suitable for temperatures between -20 to 160 °C (-4 to 320 °F). The seal material is FKM. The bend angle is 45 deg.

Suitable for: For liquid media with temperatures up to +160 °C, e.g. for cooling circuits on plastic processing machines (+200 °C on request).

Pros:

• Mold quick release couplings are developed for use with cooling or heating lines and resistance high temperature up to +160 °C
• It has a ball lock design to prevent any accidental decoupling

Specifications

Connection size : M14 x 1.5
Nominal diameter (mm) : 6
Plug diameter : 9 mm
Connection type : Outer thread metric
Material : Brass
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 15
Min temperature (°C) : -20
Max temperature (°C) : 160
Coupling features : With unlocking protection
Min pressure (bar) : 0
Compatible models : Hasco Z808/9/14×1.5/45
Shape : Coupling (female)
Sleeve material : Brass
With dust cap : No
