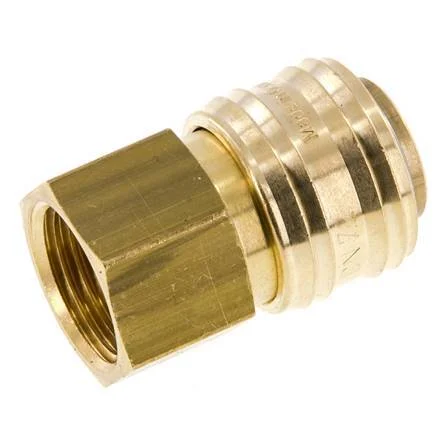

Brass DN 7.2 (Euro) Air Coupling Socket G 1/2 inch Female FKM

Brass DN 7.2 (Euro) air coupling socket with G 1/2 inch female threads. A pneumatic coupling is used to quickly connect air tools to a compressed air line. The coupling requires two parts: the socket (female) and the plug or nipple (male part). When disconnected, the coupling automatically shuts off to maintain the line pressure.

The G 1/2 inch female threads allow for it to be threaded onto a matching male threaded part. This coupling is suitable for vacuum applications. The operating pressure range is -0.95 to 35 bar. The socket is suitable for temperatures between -20 to 100°C. The rated flow rate is 1100 l/min. The seal material is FKM. This DN 7.2 mm has a Euro profile and is popular within Europe.

This product is compatible with: Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E … 07), Festo (KD4 / KS4), IMI-Norgren (238), Aventics (CP1-NW 7 / 7,8). They are often referred to as compressed air couplings, compressor couplings, pneumatic fittings, air hose couplings, etc.

Pros:

• The G 1/2 inch female threads allow for it to be threaded onto a matching male threaded part.
• Compatible with a wide range of air couplings with the same standard profile design.
• It can be used for vacuum applications.

CLS7-F series

Our air coupler offering ranges from DN 2.7 – 19 mm for standard plugs and sockets, as well as a variety of safety air couplings, compressor couplings, manifolds, compressor claw couplings, and the CEJN Multilink system. Various connection types are available for each (female threads, male threads, hose pillar, union nut, etc.) with a wide range of min and max pressures. Our non-interchangeable color-coded options give you a clear visual indicator on what lines to connect. The safety air couplings have push-buttons, swivels, and slides as a safety release function. Our 42 mm compressor claw couplings follow DIN 3498 (similar) as well as DIN 3238 (Mody) for safety applications.

Specifications

Connection size : 1/2 inch
Nominal diameter (mm) : 7.2
Connection type : Inner thread cylindrical BSPP-G
Material : Brass
Seal material : Fluorelastomer rubber (FKM)
Max pressure at 20 °C (bar) : 35
Min temperature (°C) : -20
Max temperature (°C) : 100
Coupling features : Vacuum,Sealing gasket,Hex 22 mm
Min pressure (bar) : -0.95
Compatible models : Rectus (25, 26, 1600, 1625),TEMA (1600),CEJN (320),JWL (520, 530, 560),Legris (25, 26),Parker (PE, PEF),Prevost (E … 07),Festo (KD4 / KS4),IMI-Norgren (238),Aventics (CP1-NW 7 / 7,8)
Shape : Coupling (female)
Max flow rate (l/min) : 1100
With dust cap : No
