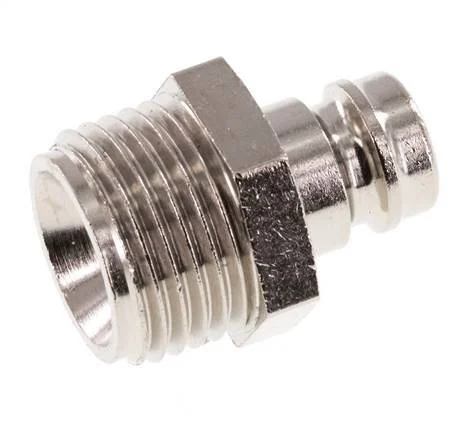

Brass DN 9 Mold Coupling Plug G 1/2 inch Male Threads [2 Pieces]

Brass DN 9 mold coupling plug with G 1/2 inch male threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The G 1/2 inch male threads allow for it to be threaded onto a matching female threaded part. The operating pressure range is 0 to 15 bar (0 to 218 psi). The coupling is suitable for temperatures between -20 to 160 °C (-4 to 320 °F).

Suitable for: For liquid media with temperatures up to +160 °C, e.g. for cooling circuits on plastic processing machines (+200 °C on request).

Pros:

• Mold quick release couplings are developed for use with cooling or heating lines and resistance high temperature up to +160 °C

Specifications

Connection size : 1/2 inch
Nominal diameter (mm) : 9
Plug diameter : 13 mm
Connection type : Outer thread cylindrical BSPP-G
Material : Brass
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 15
Min temperature (°C) : -20
Max temperature (°C) : 160
Min pressure (bar) : 0
Compatible models : Hasco Z81/13/R1/2
Shape : Plug (male)
Sleeve material : Brass
With dust cap : No
