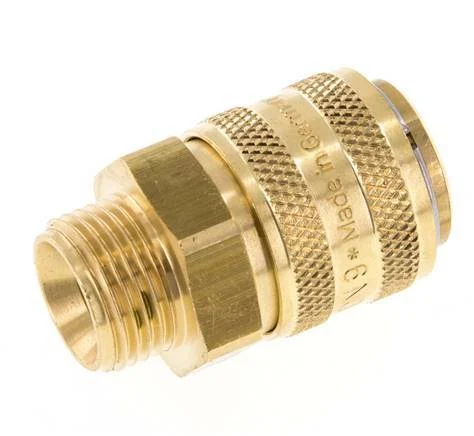

Brass DN 9 Mold Coupling Socket G 3/8 inch Male Threads Double Shut-Off

Brass DN 9 mold coupling socket with G 3/8 inch male threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The G 3/8 inch male threads allow for it to be threaded onto a matching female threaded part. The coupling has a non-return valve to prevent backflow and the push-in socket also closes when disconnected. This is considered a double-sided shut-off design. The operating pressure range is 0 to 15 bar (0 to 218 psi). The coupling is suitable for temperatures between -20 to 160 °C (-4 to 320 °F). The seal material is FKM.

Suitable for: For liquid media with temperatures up to +160 °C, e.g. for cooling circuits on plastic processing machines (+200 °C on request).

Pros:

• Mold quick release couplings are developed for use with cooling or heating lines and resistance high temperature up to +160 °C
• The socket has a double sided shut-off design, which keeps the line pressurized and prevents backflow

Specifications

Connection size : 3/8 inch
Nominal diameter (mm) : 9
Plug diameter : 13 mm
Connection type : Outer thread cylindrical BSPP-G
Material : Brass
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 15
Min temperature (°C) : -20
Max temperature (°C) : 160
Coupling features : Double sided shut-off
Min pressure (bar) : 0
Compatible models : Hasco Z82/13/R3/8
Shape : Coupling (female)
Sleeve material : Brass
With dust cap : No
