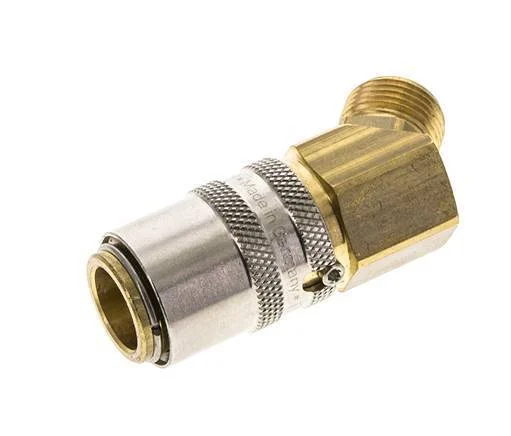

Brass DN 9 Mold Coupling Socket G 3/8 inch Male Threads Unlocking Protection 45-deg

Brass DN 9 mold coupling socket with G 3/8 inch male threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The G 3/8 inch male threads allow for it to be threaded onto a matching female threaded part. The socket has a durable ball lock design to prevent any accidental de-coupling. The operating pressure range is 0 to 15 bar (0 to 218 psi). The coupling is suitable for temperatures between -20 to 160 °C (-4 to 320 °F). The seal material is FKM. The bend angle is 45 deg.

Suitable for: For liquid media with temperatures up to +160 °C, e.g. for cooling circuits on plastic processing machines (+200 °C on request).

Pros:

• Mold quick release couplings are developed for use with cooling or heating lines and resistance high temperature up to +160 °C
• It has a ball lock design to prevent any accidental decoupling

Specifications

Connection size : 3/8 inch
Nominal diameter (mm) : 9
Plug diameter : 13 mm
Connection type : Outer thread cylindrical BSPP-G
Material : Brass
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 15
Min temperature (°C) : -20
Max temperature (°C) : 160
Coupling features : With unlocking protection
Min pressure (bar) : 0
Shape : Coupling (female)
Sleeve material : Brass
With dust cap : No
