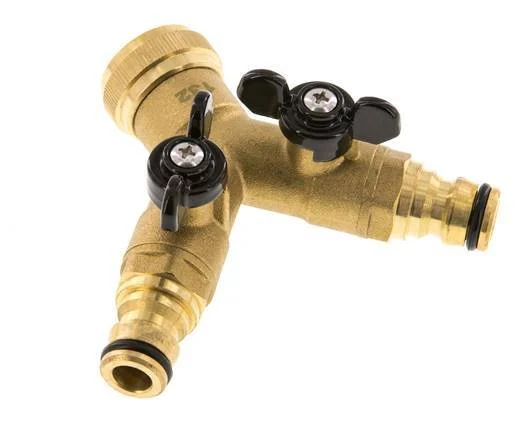

Brass Garden Hose Distributor G 3/4 inch Female Threads Ball Valve

Brass garden hose distributor with G 3/4 inch female threads. They are typically used for water lines to quickly connect and disconnect secure connections.

The G 3/4 inch female threads allow for it to be threaded onto a matching male threaded part. The operating pressure range is 0 to 80 bar (0 to 1160 psi). The coupling is suitable for temperatures between 0 to 60 °C (32 to 140 °F). The seal material is NBR.

Pros:

• The brass couplings are compatible with the same plastic GARDENA couplings
• The brass couplings are suitable for applications with larger mechanical loads
• Couplings are coupled by easily plugging the plug in the coupling socket and again decoupled by activating the loosening sleeve on the coupling socket

Specifications

Connection size : 3/4 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Brass
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 80
Min temperature (°C) : 0
Max temperature (°C) : 60
Coupling features : With ball valve
Min pressure (bar) : 0
With dust cap : No
