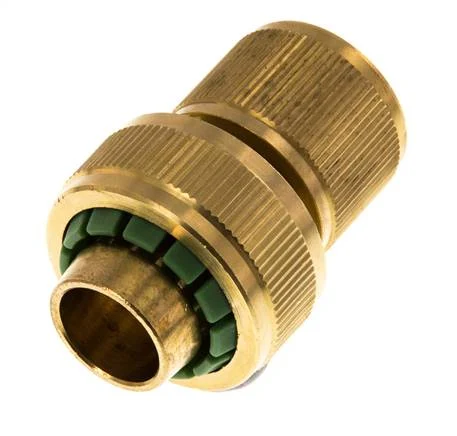

Brass GARDENA Style Hose Connector 19 mm (3/4″) Water Stop

Brass garden hose coupling socket with 19 mm union nut, suited for GARDENA couplings. They are typically used for water lines to quickly connect and disconnect secure connections.

The operating pressure range is 0 to 80 bar (0 to 1160 psi). The coupling is suitable for temperatures between 0 to 60 °C (32 to 140 °F). The seal material is NBR.

Pros:

• The brass couplings are compatible with the same plastic GARDENA couplings
• The brass couplings are suitable for applications with larger mechanical loads
• Couplings are coupled by easily plugging the plug in the coupling socket and again decoupled by activating the loosening sleeve on the coupling socket

Specifications

Connection size : 3/4 inch
Union nut connection : 19 mm
Connection type : Union nut
Material : Brass
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 80
Min temperature (°C) : 0
Max temperature (°C) : 60
Coupling features : With water stop
Min pressure (bar) : 0
Shape : Coupling (female)
With dust cap : No
