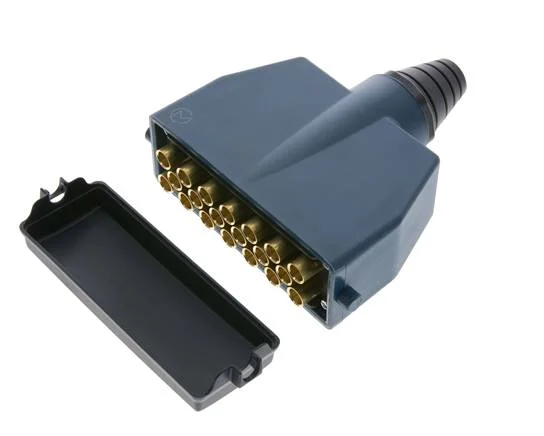

Brass Multi-coupling Plug 20×4 mm Push-in Connections

Brass multi-coupling plug with twenty 4 mm push-in connections. With this multi-coupling setup, you can easily have a connection hub of up to 20 pneumatic lines. A pneumatic coupling is used to quickly connect air tools to a compressed air line.

The maximum operating pressure is 15 bar (218 psi). The coupling is suitable for temperatures between -20 to 70 °C (-4 to 158 °F). This product is considered size 2, suitable for covers that are also size 2.

Note: Plugs and sleeves can only be coupled together if they are the same size and same number of lines.

Pros:

• Multi-couplings are used for comfortable and non-interchangeable coupling of several lines with only one coupling

Specifications

Push-in connection : 4 mm
Connection type : Push-in
Material : Brass
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 15
Min temperature (°C) : -20
Max temperature (°C) : 70
Shape : Plug (male)
Number of outlets : 20
With dust cap : No
