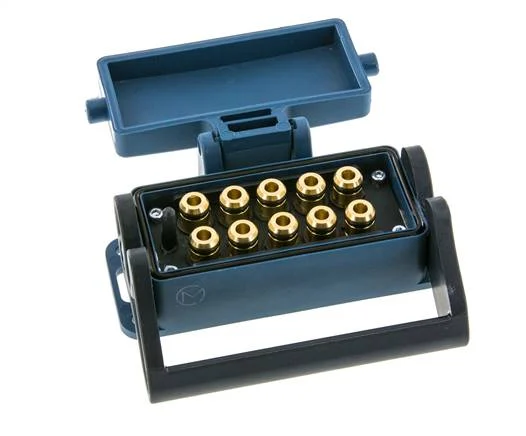

Brass Multi-coupling Socket 10×6 mm Push-in Connections Unlocking Protection

Brass multi-coupling socket with ten 6 mm push-in connections. With this multi-coupling setup, you can easily have a connection hub of up to 10 pneumatic lines. A pneumatic coupling is used to quickly connect air tools to a compressed air line.

The socket has a durable ball lock design to prevent any accidental de-coupling. The maximum operating pressure is 15 bar (218 psi). The coupling is suitable for temperatures between -20 to 70 °C (-4 to 158 °F). The seal material is NBR. This product is considered size 1, suitable for covers that are also size 1.

Note: Plugs and sleeves can only be coupled together if they are the same size and same number of lines.

Pros:

• Multi-couplings are used for comfortable and non-interchangeable coupling of several lines with only one coupling
• It has a ball lock design to prevent any accidental decoupling

Specifications

Push-in connection : 6 mm
Connection type : Push-in
Material : Brass
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 15
Min temperature (°C) : -20
Max temperature (°C) : 70
Coupling features : With unlocking protection
Shape : Coupling (female)
Number of outlets : 10
With dust cap : No
