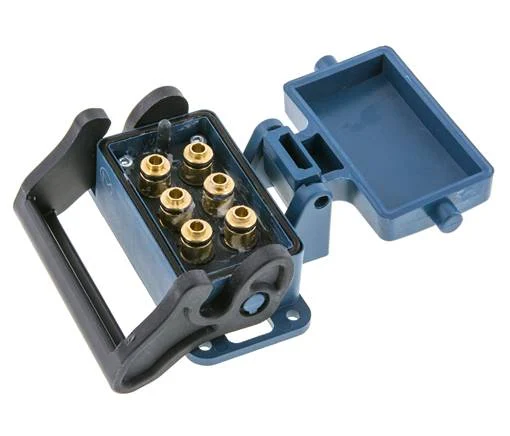

Brass Multi-coupling Socket 6×6 mm Push-in Connections Unlocking Protection Double Shut-Off

Brass multi-coupling socket with six 6 mm push-in connections. With this multi-coupling setup, you can easily have a connection hub of up to 6 pneumatic lines. A pneumatic coupling is used to quickly connect air tools to a compressed air line.

The coupling has a non-return valve to prevent backflow and the push-in socket also closes when disconnected. This is considered a double-sided shut-off design. The socket has a durable ball lock design to prevent any accidental de-coupling. The maximum operating pressure is 7 bar (102 psi). The coupling is suitable for temperatures between -20 to 70 °C (-4 to 158 °F). The seal material is NBR. This product is considered size 0, suitable for covers that are also size 0.

Note: Plugs and sleeves can only be coupled together if they are the same size and same number of lines.

Pros:

• Multi-couplings are used for comfortable and non-interchangeable coupling of several lines with only one coupling
• The socket has a double sided shut-off design, which keeps the line pressurized and prevents backflow
• It has a ball lock design to prevent any accidental decoupling

Specifications

Push-in connection : 6 mm
Connection type : Push-in
Material : Brass
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 7
Min temperature (°C) : -20
Max temperature (°C) : 70
Coupling features : Double sided shut-off,With unlocking protection
Shape : Coupling (female)
Number of outlets : 6
With dust cap : No
