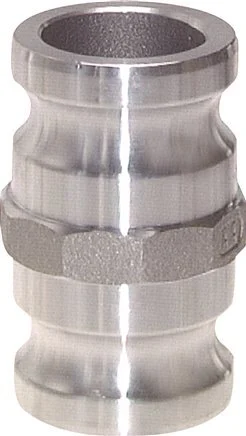

Camlock DN 140 (6”) Aluminium Coupling Connector for Socket MIL-C-27487

Aluminium DN 140 (6 inch) connector for Camlock socket. The maximum operating pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an NBR (nitrile rubber) seal. The coupling adheres to the MIL-C-27487 standard.

The coupling requires two parts: the socket (female) and the plug or adapter (male part). To connect the Camlock coupling, insert the plug (adapter) into the socket and press the levers down. To disconnect, lift both levers and pull out the plug.

Pros:

• Full bore with minimal pressure loss
• Suitable for solids, since there are no internal valves
• Aluminum plugs and sockets are lighter in weight than stainless steel
• The coupling adheres to the MIL-C-27487 standard

Specifications

Coupling size : 6 inch
Material : Aluminum
Seal material : NBR (nitrile rubber)
Nominal diameter (mm) : 140
Shape : Adapter (male)
Max pressure at 20 °C (bar) : 16
Min temperature (°C) : -10
Max temperature (°C) : 80
