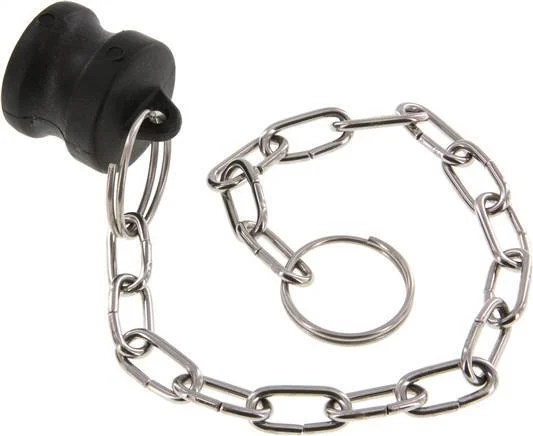

Camlock DN 20 (3/4”) Polypropylene Coupling Plug Type DP MIL-C-27487 [2 Pieces]

Polypropylene DN 20 (3/4 inch) plug for Camlock coupling socket. The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an EPDM seal. The coupling adheres to the MIL-C-27487 standard.

The coupling requires two parts: the socket (female) and the plug or adapter (male part). To connect the Camlock coupling, insert the plug (adapter) into the socket and press the levers down. To disconnect, lift both levers and pull out the plug.

Pros:

• The coupling adheres to the MIL-C-27487 standard
• It has safety cotter pins to prevent accidental decoupling

Specifications

Coupling size : 3/4 inch
Material : Polypropylene (PP)
Seal material : EPDM
Nominal diameter (mm) : 20
Shape : Adapter (male)
Min temperature (°C) : -10
Max temperature (°C) : 80
