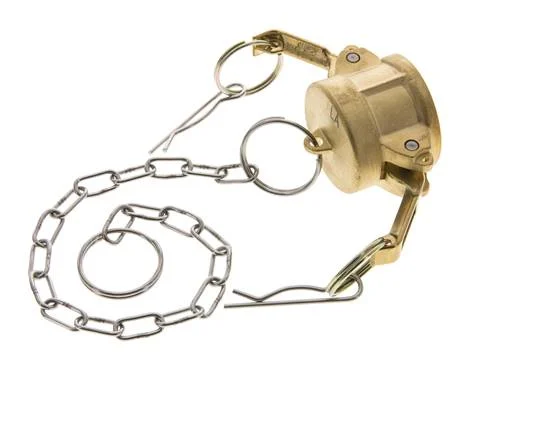

Camlock DN 25 (1”) Brass Coupling End Cap Type DC MIL-C-27487

Brass DN 25 (1 inch) end cap for Camlock coupling plug. The maximum operating pressure is 18 bar (261 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an NBR (nitrile rubber) seal. The coupling adheres to the MIL-C-27487 standard.

The coupling requires two parts: the socket (female) and the plug or adapter (male part). To connect the Camlock coupling, insert the plug (adapter) into the socket and press the levers down. To disconnect, lift both levers and pull out the plug.

Pros:

• The coupling adheres to the MIL-C-27487 standard
• It has safety cotter pins to prevent accidental decoupling

Specifications

Coupling size : 1 inch
Material : Brass
Seal material : NBR (nitrile rubber)
Nominal diameter (mm) : 25
Shape : Coupling (female)
Max pressure at 20 °C (bar) : 18
Min temperature (°C) : -10
Max temperature (°C) : 80
