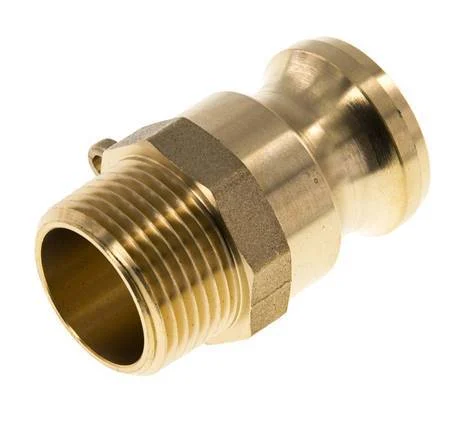

Camlock DN 25 (1”) Brass Coupling R 1” Male Thread Type F MIL-C-27487

Brass DN 25 (1 inch) Camlock coupling adapter (male) with R 1 inch male thread. This coupling is a Type F coupling (plug with male threaded end). The maximum operating pressure is 18 bar (261 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an NBR (nitrile rubber) seal. The coupling adheres to the MIL-C-27487 standard.

The coupling requires two parts: the socket (female) and the plug or adapter (male part). To connect the Camlock coupling, insert the plug (adapter) into the socket and press the levers down. To disconnect, lift both levers and pull out the plug.

Pros:

• Full bore with minimal pressure loss
• Suitable for solids, since there are no internal valves
• The coupling adheres to the MIL-C-27487 standard

Specifications

Coupling size : 1 inch
Size of threaded connection [inch] : 1 inch
Material : Brass
Seal material : NBR (nitrile rubber)
Shape : Adapter (male)
Nominal diameter (mm) : 25
Thread connection : Outer thread conical BSPT-R
Max temperature (°C) : 80
Min temperature (°C) : -10
Max pressure at 20 °C (bar) : 18
Flat seal : No
