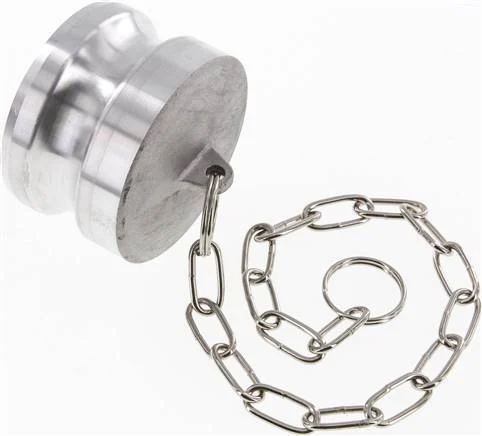

Camlock DN 60 (2 1/2”) Aluminium Coupling Plug Type DP MIL-C-27487

Aluminium DN 60 (2 1/2 inch) plug for Camlock coupling socket. The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an NBR (nitrile rubber) seal. The coupling adheres to the MIL-C-27487 standard.

The coupling requires two parts: the socket (female) and the plug or adapter (male part). To connect the Camlock coupling, insert the plug (adapter) into the socket and press the levers down. To disconnect, lift both levers and pull out the plug.

Pros:

• Aluminum plugs and sockets are lighter in weight than stainless steel
• The coupling adheres to the MIL-C-27487 standard
• It has safety cotter pins to prevent accidental decoupling

Specifications

Coupling size : 2 1/2 inch
Material : Aluminum
Seal material : NBR (nitrile rubber)
Nominal diameter (mm) : 60
Shape : Adapter (male)
Min temperature (°C) : -10
Max temperature (°C) : 80
