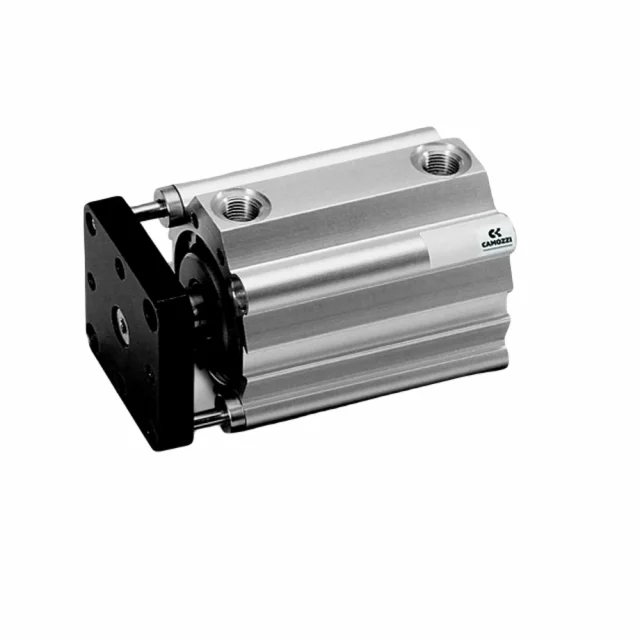

Camozzi, QPR2A063A075, Series QPR Short-Stroke Cylinder, 63 mm Bore, 75mm Stroke
Features:
- The guides are manufactured in the external profile parallel to the sliding axis on three sides.
- These are used to locate the switches that sense the piston position.
- The nonrotating guides make the QPR suitable for supply operations and for handling equipment.
Compact dimension Series QPR allows the installation in small spaces. Because of their particular construction, they can be mounted by means of feet or trunnions.
For more information, please see Data Sheet
Technical Details
| Type of Construction | Compact with non-rotating guides |
| Operation | Double-acting |
| Materials |
|
| Assembly | By means of screws or brackets |
| Operating Temperature | 0°C – 80°C (with dry air – 20°C) |
| Operating Pressure | 1 – 10 bar |
| Fluid | Filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted. |
| Strokes | The minimum stroke for use of the sensors is 10 mm |
