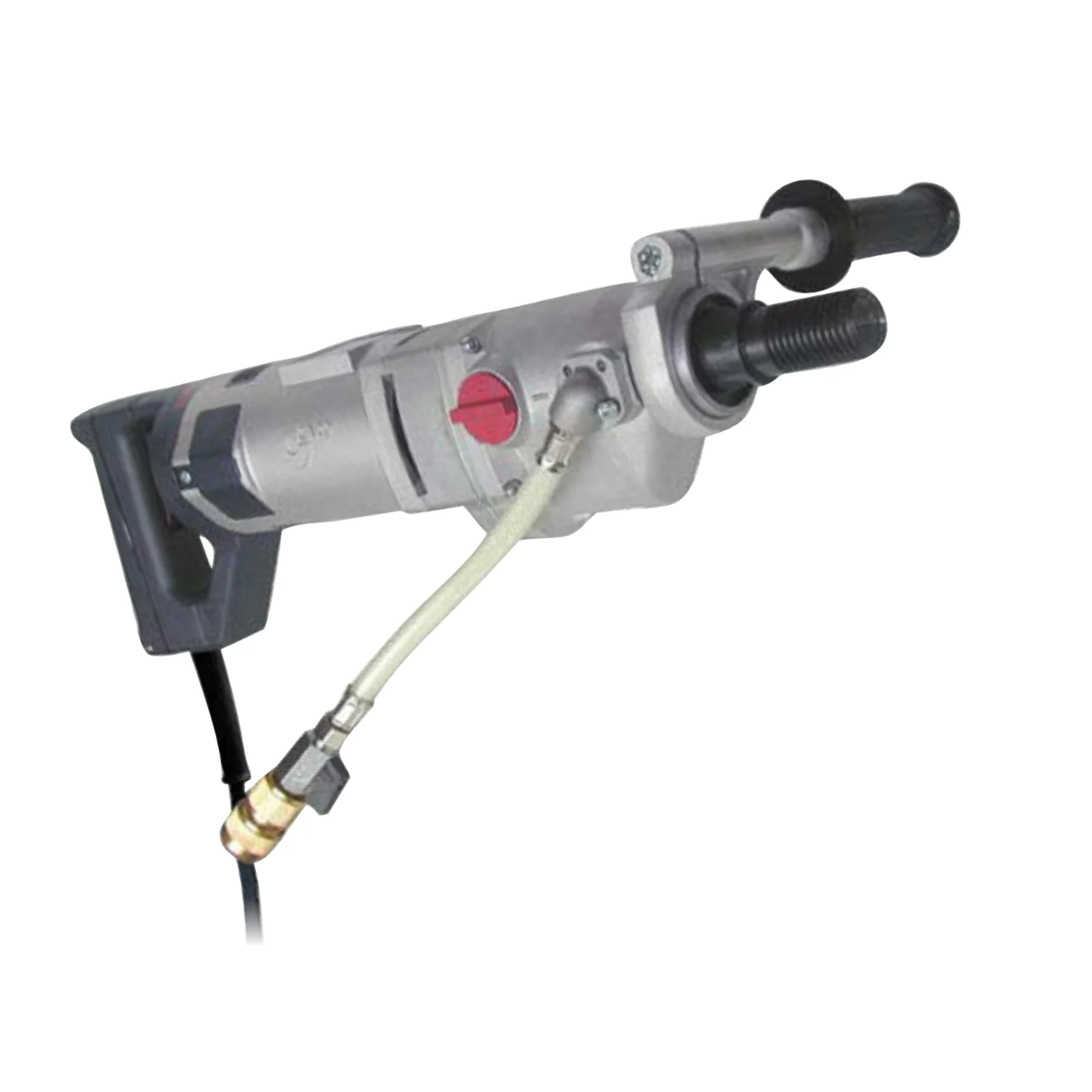

The HHD183 Handheld Core Drill is a powerful and versatile drilling solution designed for professional contractors and heavy-duty rental applications.
Equipped with a robust 2.8 HP electric motor and three-speed gearbox, it delivers drilling speeds from 720 to 3,100 RPM, making it ideal for a wide range of concrete and masonry core drilling tasks. Featuring advanced Smart Electronics technology, the drill protects internal electrical components from overheating, ensuring reliable performance and extended tool life. Its ergonomic rear handle improves operator comfort, while compatibility with wet drilling accessories and core bits up to 6 inches makes it suitable for demanding construction projects.
PRODUCT FEATURES:
- Water Attachment and Accessories: 1-1/4-7 Male with 5/8-11 adapter and quick attach water accessories for wet drilling
- Storage Space Saver: Provides room for side handle, manual, and extra tools in a compact and convenient case
- Optional Stand: Provides additional drilling flexibility with its sturdy column and carriage for smooth drilling
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | HHD183 Handheld Core Drill |
| Motor Power | 2.8 HP |
| Motor Type | Electric |
| Motor Brand | Clipper |
| Voltage | 115V |
| Frequency / Phase | 60Hz / AC / Single Phase |
| Current Draw | 18 Amps |
| Gear Speeds | 3-Speed Gearbox |
| RPM Range | 720 / 1157 / 3100 RPM |
| Smart Electronics | Yes |
| Spindle Thread | 1-1/4″-7 UNC with 5/8″-11 UNC Adapter |
| Weight | 17 lbs (7.3 kg) |
| Maximum Core Bit Size | 6 in. (152 mm) with stand |
| Recommended Bit Size – Gear 1 | Up to 4 in. (100 mm) |
| Recommended Bit Size – Gear 2 | 2–3 in. (50–76 mm) |
| Recommended Bit Size – Gear 3 | 1/2–2 in. (12–50 mm) |
