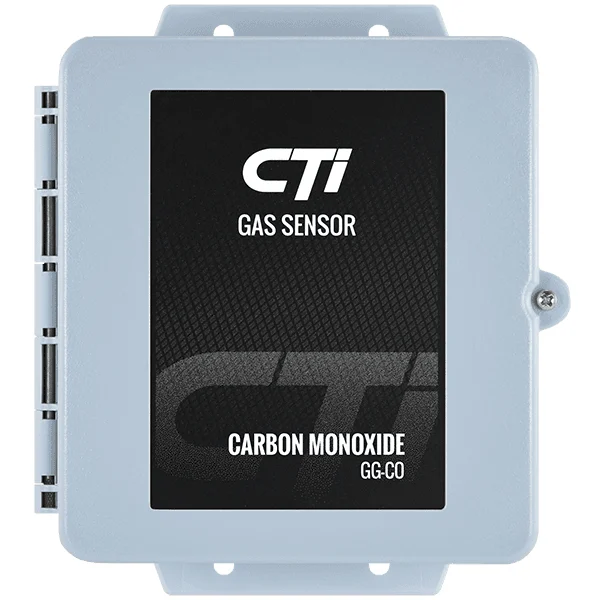

Name: CTI GG-CO-200 Gas Sensor CO 0-200 ppm
SKU: GG-CO-200
Availability: InStock

Calibration Technologies (CTI), GG-CO-200, Gas Sensor, Carbon Monoxide (CO), 0-200 ppm Electrochemical, Polycarbonate Enclosure

Features:

CO specific Electrochemical carbon monoxide sensor, (0-200 ppm CO).
Industry standard linear 4/20 mA output.
Circuit board sealed in potting material to protect sensitive sensor components and copper tracing from corrosion.
Environmentally adaptive, NEMA 3RX heated Enclosures safe for outdoors and washdown areas.
Built in 3 stage heater for freezing temperatures.
SGS listed to UL 61010-1, and CSA C22.2 No. 61010-1-12

Enclosure	Polycarbonate: Injection-molded, NEMA 3RX washdown duty, with hunged lid and captive screw Stainless Steel: 18 GA, NEMA 3RX washdown duty, with hinged lid and captive screw
Dimensions	7.7″ H x 6.7″ W x 3.8″ D
Wiring Connection	3-conductor, shielded, stranded, ≥ 20 AWG cable (Belden 8772 or equivalent) up to 1500 ft
Terminal Block Plug (Field Wiring)	26-12 AWG, torque 4.5 lbs-in
Output Signal	4-20 mA linear output
Input Power	+24 vdc
Detection Method	Diffusion
Sensor Technology	Electrochemical
Response Time	T50: <30 seconds \| T90: <60 seconds
Accuracy	+/- 5%
Zero Drift / month	<0.1% full scale
Span Drift / month	<2% full scale
Linearity	+/- 0.5%
Repeatability	+/- 1% full scale
Operating Temperature	-20°F to +120°F
Operating Humidity	5-100% condensing
Certification	SGS listed to UL 61010-1, and CSA C22.2 No. 61010-1-12
