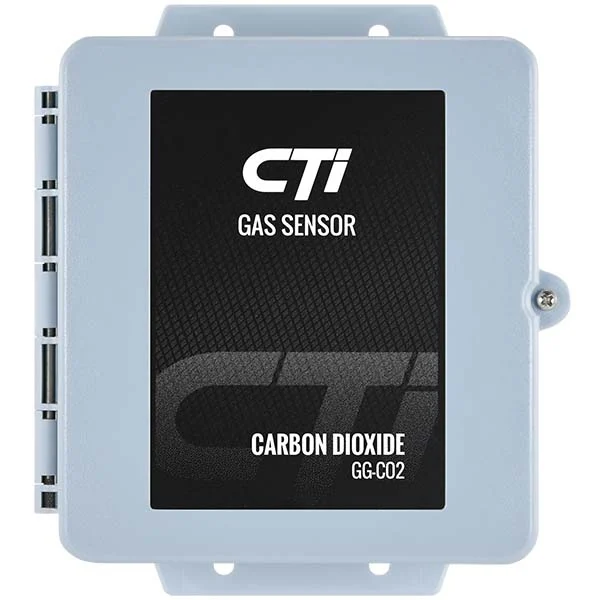

Calibration Technologies (CTI), GG-CO2-1%, Gas Sensor, Carbon Dioxide (CO2), 0-10000 ppm (0-1%) Infrared, Polycarbonate Enclosure
Features:
- NDIR infrared sensor with Carbon Dioxide specific infrared sensor technology.
- Circuit board sealed in potting material to protect sensitive sensor components and copper tracing from corrosion.
- Environmentally adaptive, NEMA 3RX heated Enclosures safe for outdoors and washdown areas.
- Ideal for Engine Rooms, Freezers, Docks, Blast Cells, Food-Processing areas, Refrigeration Systems, Breweries, Refineries, and more.
- Built in 3 stage heater for freezing temperatures.
- SGS listed to UL 61010-1, and CSA C22.2 No. 61010-1-12
Technical Details
| Enclosure |
|
| Dimensions | 7.7″ H x 6.7″ W x 3.8″ D |
| Wiring Connection | 3-conductor, shielded, stranded, ≥ 20 AWG cable (Belden 8772 or equivalent) up to 1500 ft |
| Terminal Block Plug (Field Wiring) | 26-12 AWG, torque 4.5 lbs-in |
| Output Signal | 4-20 mA linear output |
| Input Power | +24 vdc |
| Detection Method | Diffusion |
| Sensor Technology | Electrochemical |
| Response Time | T50: <30 seconds | T90: <60 seconds |
| Accuracy | +/- 2% |
| Zero Drift / month | <0.5% full scale |
| Span Drift / month | <1% full scale |
| Linearity | +/- 0.5% |
| Repeatability | +/- 1% full scale |
| Operating Temperature | -60°F to +120°F |
| Operating Humidity | 5-100% condensing |
| Certification | SGS listed to UL 61010-1, and CSA C22.2 No. 61010-1-12 |
