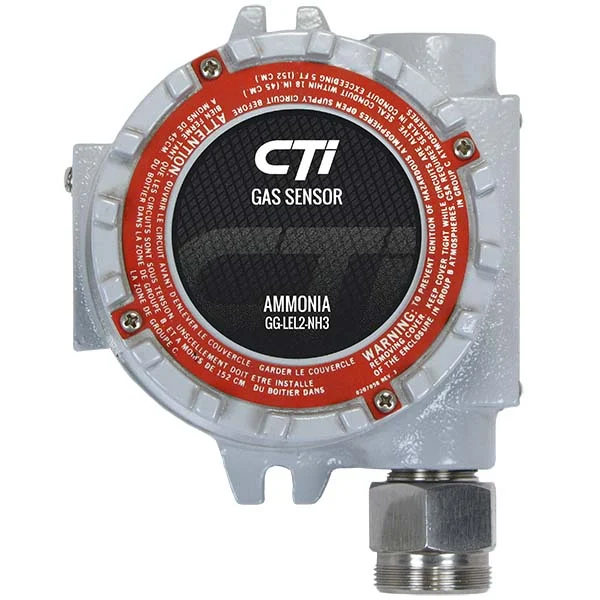

Name: CTI GG-LEL2-NH3 Gas Sensor Ammonia 100% LEL
SKU: GG-LEL2-NH3
Availability: InStock

Calibration Technologies (CTI), GG-LEL2-NH3, Gas Sensor, Ammonia (NH3), 0-100% LEL Catalytic Bead, Explosion Proof Enclosure

Features:

Explosion-proof Enclosure.
Target Gas selective sensor technology.
Circuit board sealed in potting material to protect sensitive sensor components and copper tracing from corrosion.
Transmitters are target gas, sensor element, and range specific. Use only the specified replacement sensor for each detector.

Size	6.75″ H x 5.25″ W x 4.5″ D
Weight	3.75 lbs
Enclosure	Copper-free aluminum body, epoxy powder coat finish, neoprene gasket, for hazardous areas
Output Signal	4-20 mA linear output
Range	0-100% LEL
Power	24vdc, 80 mA
Operating Temperature	-40F to +140F
Ingress Protection	NEMA 4X / EEMAC 9EFG
Sensor Head certification	ATEX Certificate CESI 01 ATEX 066 U
Enclosure certification	NEC/CEC: Class I, Division I, Groups B, C, D Class II, Division 1, Groups E, F, G Class II, Division 2, Groups F, G Class III UL Standard: 1203 CSA Standard: C22.2 No. 30 FM Classifcation No.: 3615 ATEX Certificate KEMA 02 ATEX 2265U IEC Standards EN: 60079-0, EN: 60079-1, EN: 60529
