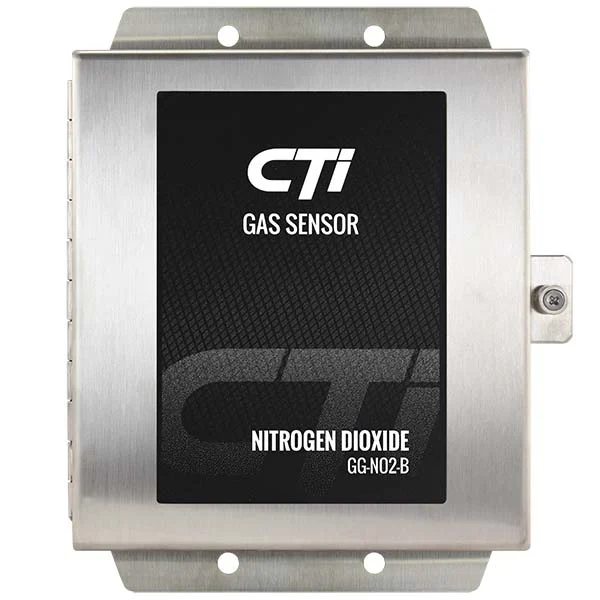

Name: CTI GG-NO2-B-10-ST Gas Sensor NO2, 0-10 ppm, SS
SKU: GG-NO2-B-10-ST
Availability: InStock

Calibration Technologies (CTI), GG-NO2-B-10-ST, Gas Sensor, Nitrogen Dioxide (NO2), 0-10 ppm Electrochemical, Stainless Steel Enclosure

Features:

Nitrogen Dioxide specific sensor technology with a range of 0-10 ppm NO2.
Environmentally adaptive, NEMA 3RX heated Enclosures safe for outdoors and washdown areas.
Designed “food industry tough” for wash-down areas, blast cells, engine rooms, etc.
Circuit board sealed in potting material to protect sensitive sensor components and copper tracing from corrosion.
Built in 3 stage heater for freezing temperatures.
SGS listed to UL 61010-1, and CSA C22.2 No. 61010-1-12

Enclosure	Polycarbonate: Injection-molded, NEMA 3RX washdown duty, with hunged lid and captive screw Stainless Steel: 18 GA, NEMA 3RX washdown duty, with hinged lid and captive screw
Dimensions	7.7″ H x 6.7″ W x 3.8″ D
Wiring Connection	3-conductor, shielded, stranded, ≥ 20 AWG cable (Belden 8772 or equivalent) up to 1500 ft
Terminal Block Plug (Field Wiring)	26-12 AWG, torque 4.5 lbs-in
Output Signal	4-20 mA linear output
Input Power	+24 vdc
Detection Method	Diffusion
Sensor Technology	Electrochemical
Response Time	T50: <60 seconds \| T90: <120 seconds
Accuracy	+/- 5%
Zero Drift / month	<0.1% full scale
Span Drift / month	<3% full scale
Linearity	+/- 0.5%
Repeatability	+/- 1% full scale
Operating Temperature	-4°F to +122°F
Operating Humidity	5-100% condensing
Certification	SGS listed to UL 61010-1, and CSA C22.2 No. 61010-1-12
