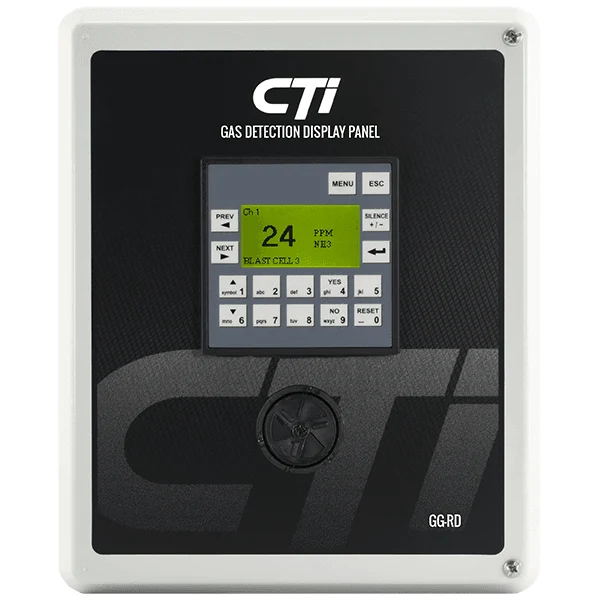

Calibration Technologies (CTI), GG-RD2, GG-6 Remote Display, Version 2+
Features:
- Cannot be used in addition to GG-6 gateway modules.
- Adds remote display capabilities to the GG-6 with silenceable onboard buzzer.
- Connects to GG-6 via MODBUS RTU protocol on RS-485 and mirrors the display of the GG-6.
- Powered by 24VDC from GG-6 controller.
- Weatherproof NEMA 4X polycarbonate Enclosure safe for outdoors and wash-down areas.
- Must be mounted within 1000 feet of GG-6.
- Daisy chain many Remote Displays to cover multiple locations.
- The GG-RD2 is to be selected for applications with multiple remote displays.
- SGS listed to UL 61010-1, and CSA C22.2 No. 61010-1-12
Technical Details
| Size | 11.3″ H x 9.3″ W x 7.0″ D |
| Weight | 5.5 lbs |
| Input Power Requirements | 24vdc @ .25A |
| Operating Temperature | 0F to 122F |
| Wiring Connection | RS-485: RJ11 (2 RJ11 breakout boxes included) |
| Features | Continuous real-time sensor readings and alarm indication of GG-6, silenceable onboard buzzer, watertight enclosure. |
| Certification | SGS listed to UL 61010-1, and CSA C22.2 No. 61010-1-12 |
