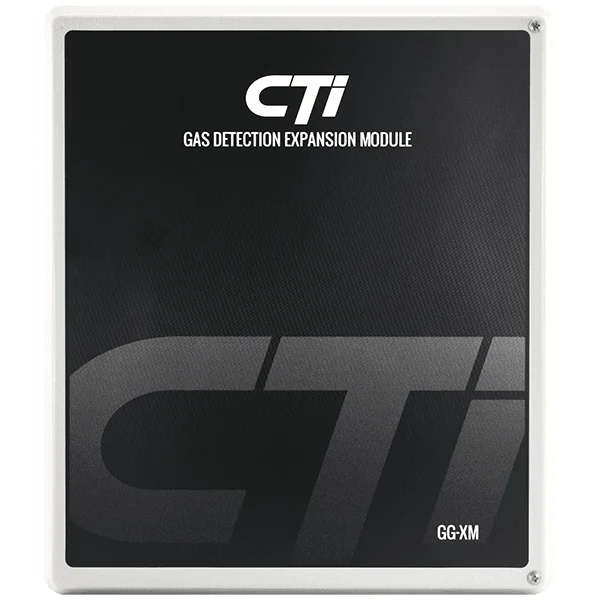

Calibration Technologies (CTI), GG-XM, Expansion Module for Use with the GG-6 Controller
Features:
- GG-6 Expansion Module.
- Adds (8) 4/20 mA inputs, and (8) relay outputs to the GG-6 controller. Maximum of 3 GG-XM for each GG-6 controller.
- Includes expansion module with harness interconnect, eight 10A relay outputs, and 4A power supply.
- Simple setup and configuration through menu on GG-6.
- Weatherproof NEMA 4X polycarbonate Enclosure safe for outdoors and wash-down areas.
- Must be mounted close to GG-6 and includes a 3 foot interconnect cable. Optional 72″ interconnect cable found under equipment options.
Technical Details
| Size | 15.8″ high x 14″ wide x 7″ deep |
| Weight | 12.0 lbs |
| AC Power Requirements | 110vac @ 3A |
| DC Power | 24vdc @ 6.5A |
| Temperature Range | 0F to +122F (-18C to +50C) |
| Relay Outputs | (8) fully programmable |
| Features | Calibration Mode, Relay Test Function, Adjustable warn and alarm setpoints, Alarm Log, adjustable relay latch/non-latch, downscale alarm setting for O2 monitoring, horn silence button, All features require a GG-6. |
| Certification | SGS listed to UL 61010-1, and CSA C22.2 No. 61010-1-12 |
