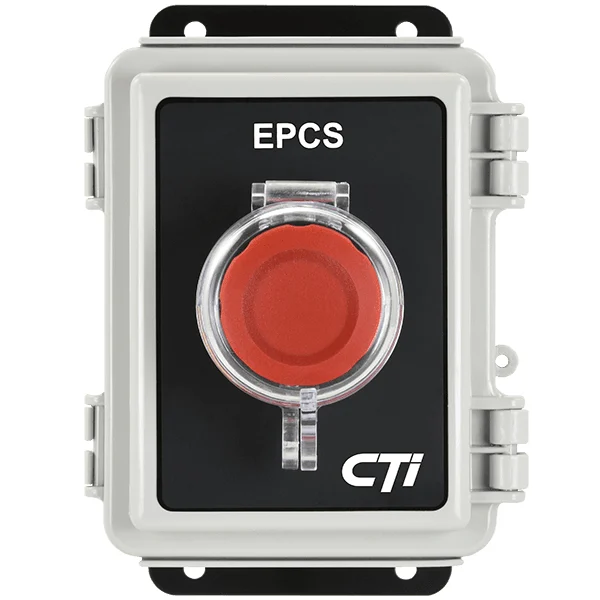

Calibration Technologies (CTI), SB-EPCS2, Emergency Pressure Control Push-button Switch Includes Tamper-proof Flip-cover, and NEMA4 Enclosure
Features:
- 40 mm push/pull latching mushroom push-button switch.
- Tamper-proof clear switch cover.
- IP66/NEMA4 weatherproof design for outdoors or wash-down environments.
- 120 vac or 24 vdc
- 1.5 Amp normally open and normally closed contacts.
- Circuit Board includes terminal block for wire landings.
- Mounting flanges for wall mounting.
Technical Details
| Size | 5.1″ high x 4.2″ wide x 4″ deep |
| Weight | 1.0 lbs |
| Power Requirements | 120 vac or 24vdc |
| Contact Rating | 1.5A, 120vac or 24vdc |
| Ingress Protection | IP66 / NEMA 4 |
| Operating Temperature | -40F to 120F |
| Mechanical Durability | 500,000 cycles |
| Actuator | Pull to release, mushroom 40mm |
| Mounting Plate | Anodized Aluminum |
