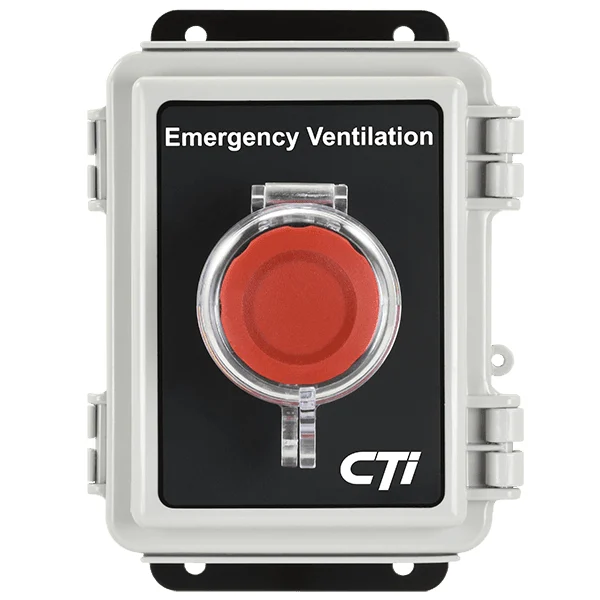

Calibration Technologies (CTI), SB-EV2, Emergency Ventilation Push-button Switch Includes Tamper-proof Flip-cover, and NEMA4 Enclosure
Features:
- 40 mm push/pull latching mushroom push-button switch.
- Tamper-proof clear switch cover.
- IP66/NEMA4 weatherproof design for outdoors or wash-down environments.
- 10 Amp normally open and normally closed contacts.
- Add up to (6) contact blocks
- Mounting flanges for wall mounting.
Technical Details
| Size | 6.35″ high x 4.42″ wide x 4″ deep |
| Weight | 1.0 lbs |
| Power Requirements | 120 vac or 24vdc |
| Contact Rating | 10A, 120vac or 24vdc |
| Ingress Protection | IP66 / NEMA 4 |
| Operating Temperature | -40F to 150F |
| Mechanical Durability | 500,000 cycles |
| Actuator | Pull to release, mushroom 40mm |
| Mounting Plate | Powder coated aluminum |
