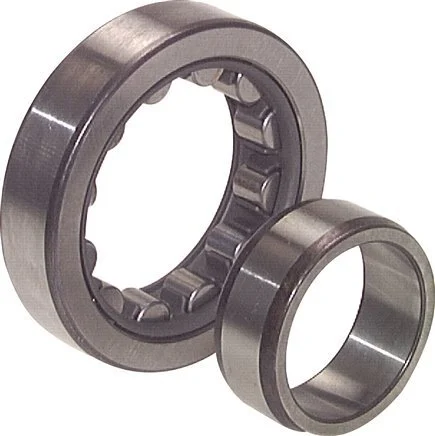

Cylindrical Roller Bearing 150x270x45mm DIN 5412 Massive Brass Cage NJ

Use this cylindrical roller bearing for high speed and heavy radial load applications. In addition to being ground to ensure maximum contact with the raceway, their rolling elements are precisely crowned to avoid edge loading as a result of shaft misalignment. NJ design means that the bearing has two machined flanges on the outer ring and a machined flange on one side of the inner ring. Within the outer ring is the roller and cage assembly.

Pros:

• Provides high stiffness, low friction and a long service life
• Accommodates axial displacement
• Suitable for axial loads thanks to the integral flange on the inner ring Equipped with a massive brass cage

Specifications

Material : Steel
Suitable for shaft diameter (mm) : 150
Inner diameter (mm) : 150
Outer-diameter (mm) : 270
Length (mm) : 45
SKF bearing coding prefix : NJ
SKF bearing coding suffix : Open,M
FAG bearing coding prefix : NJ
FAG bearing coding suffix : Open,M
Model : Cylindrical roller bearing
