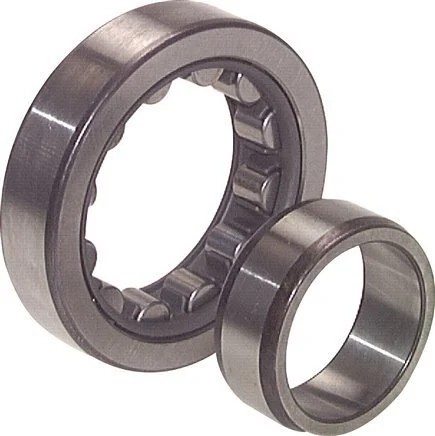

Cylindrical Roller Bearing 150x270x73mm DIN 5412 Massive Brass Cage NU

Use this cylindrical roller bearing for high speed and heavy radial load applications. In addition to being ground to ensure maximum contact with the raceway, their rolling elements are precisely crowned to avoid edge loading as a result of shaft misalignment. NU design means that the bearing has two machined flanges on the outer ring and no flanges on the inner ring. The rollers and cages are assembled in the outer ring.

Pros:

• Provides high stiffness, low friction and a long service life
• Accommodates axial displacement
• Equipped with a massive brass cage

Cons:

• No flanges in the inner ring, so cannot support thrust loads

Specifications

Material : Steel
Suitable for shaft diameter (mm) : 150
Inner diameter (mm) : 150
Outer-diameter (mm) : 270
Length (mm) : 73
SKF bearing coding prefix : NU
SKF bearing coding suffix : Open,M
FAG bearing coding prefix : NU
FAG bearing coding suffix : Open,M
Model : Cylindrical roller bearing
