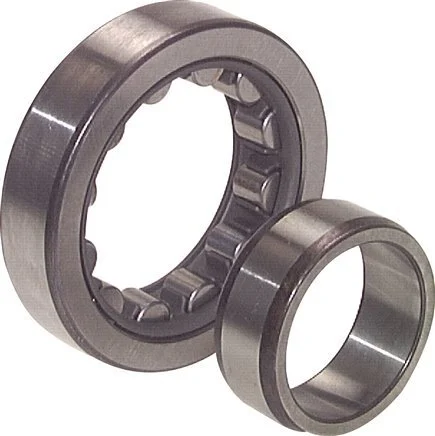

Cylindrical Roller Bearing 60x130x31mm DIN 5412 Reinforced NU

Use this cylindrical roller bearing for high speed and heavy radial load applications. In addition to being ground to ensure maximum contact with the raceway, their rolling elements are precisely crowned to avoid edge loading as a result of shaft misalignment. NU design means that the bearing has two machined flanges on the outer ring and no flanges on the inner ring. The rollers and cages are assembled in the outer ring.

Pros:

• Provides high stiffness, low friction and a long service life
• Accommodates axial displacement
• Equipped with a glass fibre reinforced PA66 cage

Cons:

• No flanges in the inner ring, so cannot support thrust loads

Specifications

Material : Steel
Suitable for shaft diameter (mm) : 60
Inner diameter (mm) : 60
Outer-diameter (mm) : 130
Length (mm) : 31
SKF bearing coding prefix : NU
SKF bearing coding suffix : Open,E,TN9
FAG bearing coding prefix : NU
FAG bearing coding suffix : Open,E
Model : Cylindrical roller bearing
