The #585K is a professional grade tool used for diagnosing electrical, computer and engine problems on any vehicle.

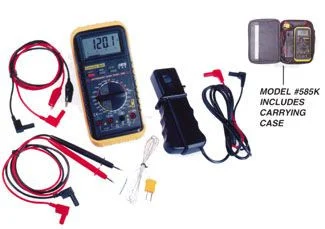

The #585K includes two sets of test leads, RPM pick-up, temperature probe, protective holster, 9 volt battery, instructions manual and carrying case. Inductive RPM pick-up features a five position, adjustable sensitivity switch.
Features
45 Test Ranges, 14 Test Functions
RPM for DIS & standard ignitions
Dual display w/analog bargraph and digital readings
Built-in temperature readings
RPM pick-up & temperature probe included
10 Meg/Ohm Input Impedance
Dual fuse protection
Safety leads & jacks
Built-in tilt stand
9V battery installed
TEST RANGES:
DC Volts: 0-320mV, 3.2V, 32V, 320V, 1000V
AC Volts: 0-3.2V, 32V, 320V, 1000V
Dwell 2 cyl, 3 cyl, 4 cyl, 5 cyl, 6 cyl, 8 cyl
DC Amps: 0-320uA, 3.2mA, 32mA, 320mA, 10A
Duty Cycle: 1.0%-90%
AC Amps: 0-320uA, 3.2mA, 32mA, 320mA, 10A
Frequency: 0-320Hz, 3200Hz, 32kHz
Ohms: 0-320, 3.2K, 32K, 320K, 3.2M, 32M
Temp: -20C to 320C, -20C to 750C / -4F to 320F, -4F to 1400F
RPM 4: 0-3200 RPM, 12,000 RPM x 10
RPM 2/DIS: 0-3200 RPM, 6,000 RPM x 10
Continuity: Audible Beep
Diode: Diode Test
NOTE: Click image for multi-meter comparison chart. 42 Test ranges, 12 functions, RPM for DIS and standard ignition. Dual display with analog bargraph and large LCD digtal display. Built in temperature readings. RPM pick up and temperature probe included. 10 Meg/Ohm input impedance. Safety leads and jacks.
