Applications
- Structural connections, i.e., beam and column anchorage
- Tension zone applications, i.e., safety-related attachments
- Equipment anchorage, angles, brackets and ledgers
- Utility supports and bracing attachments
- Barriers, guards and fencing
- Mezzanines, racking and railing
- Seismic and wind loading (SDC A – F)
- Facades, clips and mounts
Approvals & Listings
- Knurled mandrel provides consistent performance in cracked and uncracked concrete
- Mandrel design helps prevent galling during installation and service life
- Nominal drill bit size is the same as the anchor diameter
- Anchor can be installed through standard clearance fixture holes
- Length ID code and identifying marking stamped on head of each anchor
- Anchor design allows for follow-up expansion after setting under tensile loading
- Made in USA versions (MIUSA) available on request; see ordering information on page 12
- MIUSA anchors can meet domestic content requirements (e.g. BAA, TAA, AIS) at time of publication; product certifications available by request ([email protected])

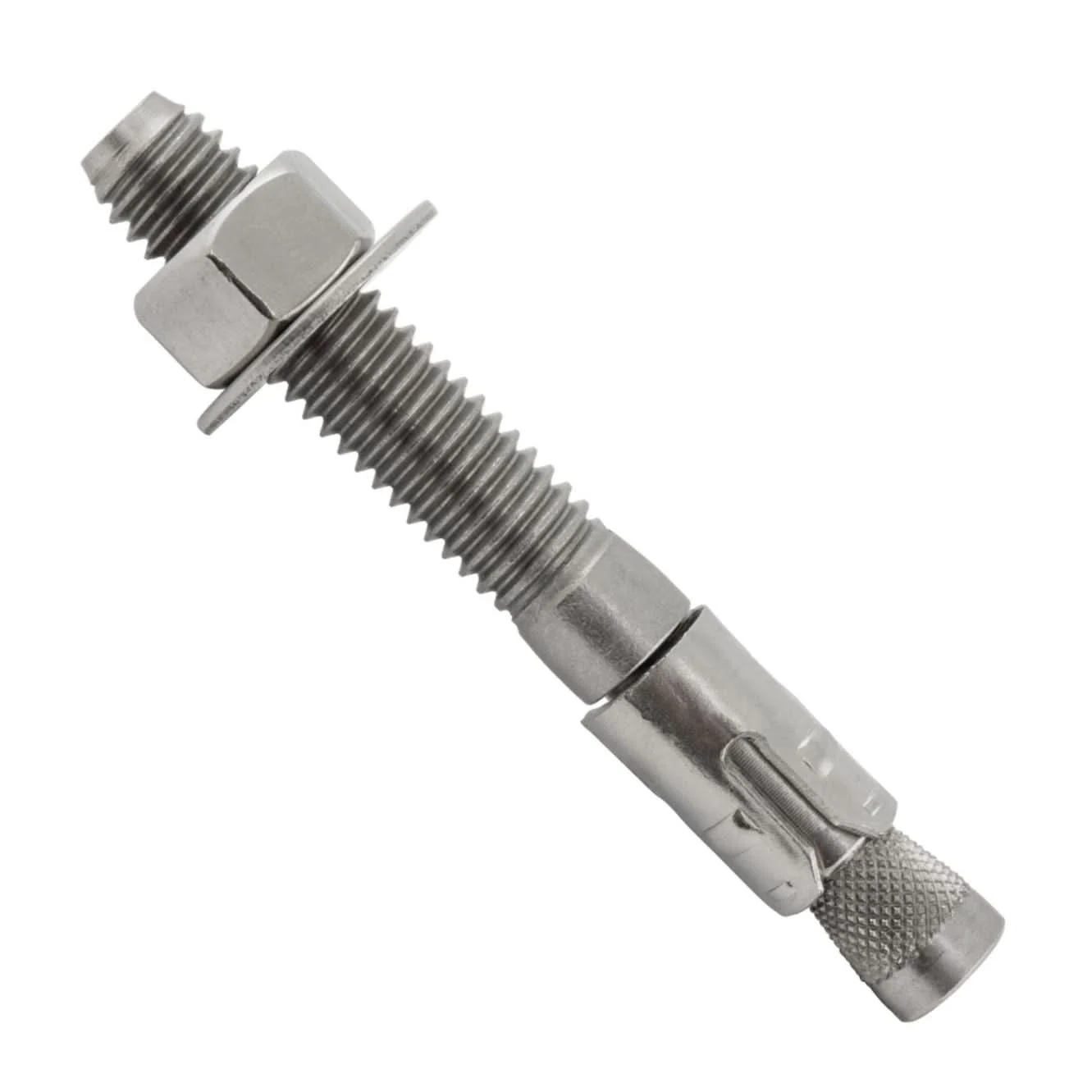

The Power-Stud+ SD4 and Power-Stud+ SD6 anchors are fully threaded, torque-controlled,stainless steel wedge expansion anchors which are designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight, lightweight concrete, and grouted concrete masonry (CMU). The anchor is manufactured with a stainless steel body and expansion clip. Nuts and washers are included.
- Knurled mandrel provides consistent performance in cracked and uncracked concrete
- Mandrel design helps prevent galling during installation and service life
- Nominal drill bit size is the same as the anchor diameter
- Anchor can be installed through standard clearance fixture holes
- Length ID code and identifying marking stamped on head of each anchor
- Anchor design allows for follow-up expansion after setting under tensile loading
- Made in USA versions (MIUSA) available on request; see ordering information on page 12
- MIUSA anchors can meet domestic content requirements (e.g. BAA, TAA, AIS) at time of publication; product certifications available by request ([email protected])
