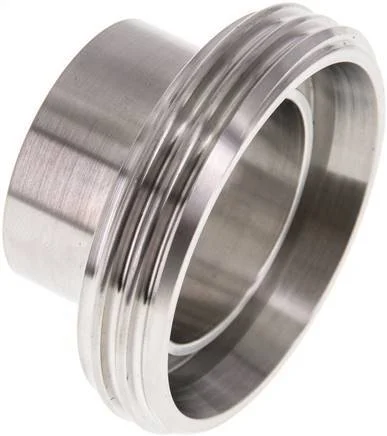

DIN 11851 Sanitary (Dairy) Fitting 65 X 1/6” x 41 mm Stainless Steel EPDM

This stainless steel sanitary fitting is compliant with DIN 11851. It has a round threads on one side and a tube on the other side. Sanitary fittings connect using a union nut. The seal material is EPDM.

Specifications

Thread : 65 x 1/6 inch
Tube outer diameter : 41 mm
Connection type : External thread Rd,Tube connection
Material : Stainless steel
Seal material : EPDM
Nominal diameter : DN 40
Standard : DIN 11851
Approval : FDA 21 CFR 177.2600
Quality of material : Stainless steel (1.4404)
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4404)
Material quality connection 2 : Stainless steel (1.4404)
Shape : Straight
With drain : No
