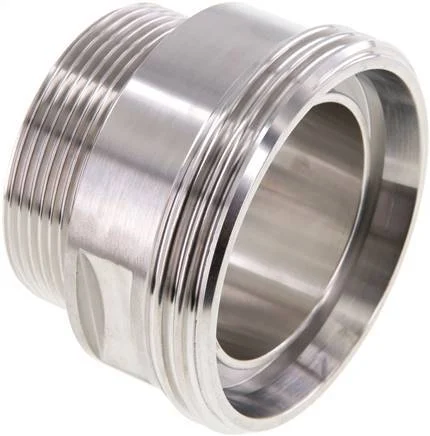

DIN 11851 Sanitary (Dairy) Fitting 78 X 1/6” x G2” Stainless Steel EPDM

This stainless steel sanitary fitting is compliant with DIN 11851. It has a round threads on one side and G threads on the other side. The seal material is EPDM with food approval FDA 21 CFR 177.2600 and EG VO 1935/2004. Sanitary fittings connect using a union nut. The seal material is EPDM.

Specifications

Thread : 2 inch
Thread (smaller) : 78 x 1/6 inch
Connection type : Outer thread cylindrical BSPP-G,External thread Rd
Material : Stainless steel
Seal material : EPDM
Nominal diameter : DN 50
Standard : DIN 11851
Approval : FDA 21 CFR 177.2600
Fitting features : Reducing
Quality of material : Stainless steel (1.4404)
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4404)
Material quality connection 2 : Stainless steel (1.4404)
Shape : Straight
With drain : No
