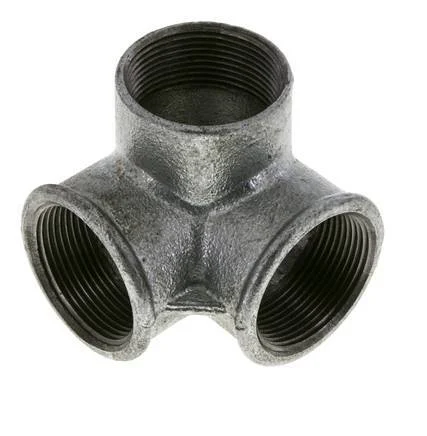

Distributor 1 1/2” Female Malleable cast iron 25bar (351.25psi)

This is an elbow distributor. It is made of malleable cast iron and has a zinc coating for corrosion protection. The maximum operating pressure is 25 bar (351.25 psi).

Specifications

Thread : 1 1/2 inch
Connection type : Inner thread cylindrical BSPT-Rp
Material : Malleable cast iron
Max pressure at 20 °C (bar) : 25
Angle adjustable : No
Material connection 1 : Malleable cast iron
Material connection 2 : Malleable cast iron
Material connection 3 : Malleable cast iron
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
Surface protection connection 3 : Galvanic zink plated
With drain : No
