DN 100 110-A Storz Strainer

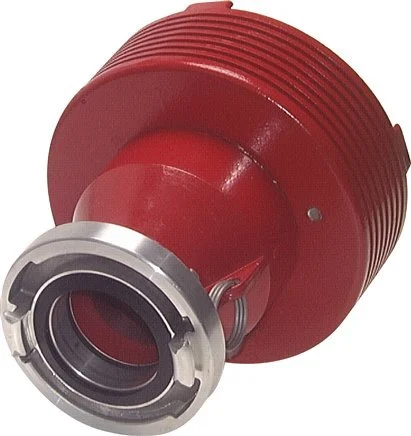

This is a DN 100 Storz strainer with 110-A Storz connection (lug distance of 133 mm). It has a check valve and drainage device. The maximum operating pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -40 to 110 °C (-40 to 230 °F). A strainer prevents debris from entering the flow.

Pros:

• Adheres to DIN 14362
• Quick connection and release by twisting 120 degrees

Specifications

Storz size : 110-A
Hydrant features : With check valve,With drainage device
Lug distance 1 : 133 mm
Standard : DIN 14362
Max temperature (°C) : 110
Min temperature (°C) : -40
Max pressure at 20 °C (bar) : 16
Nominal inner diameter connection 1 : DN 100
Number of Storz connections : 1
