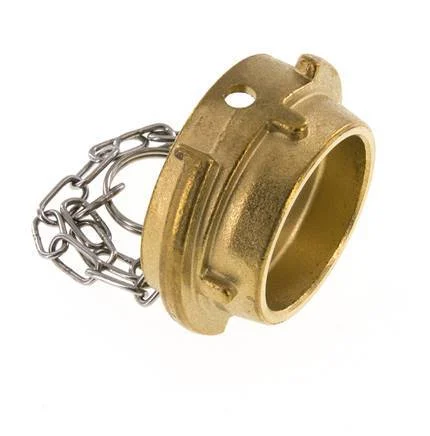

DN 50 Brass Tank Truck (TW) Plug VB Type

This is a DN 50 tank truck plug (VB-type). The VB plug is used for MK-type couplings. It is made of brass with a CSM (Hypalon) seal. The maximum pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -20 to 80 °C (-4 to 176 °F).

A tank truck coupling consists of a VK-part (male) and an MK-part (female). The coupling is locked using the lever on the MK-part. The female part couples with the male part by turning the clamping lever. This tank truck coupling adheres the EN 14420-6 (DIN 28450) standard.

Pros:

• Adheres to the EN 14420-6 (DIN 28450) standard and is interchangeable with other brands
• The tank truck coupling has a large free flow area

Specifications

Material : Brass
Nominal diameter (mm) : 50
Seal material : CSM (Hypalon)
Shape : VB (male) plug
Max temperature (°C) : 80
Min temperature (°C) : -20
Max pressure at 20 °C (bar) : 16
Standard : EN 14420-6 (DIN 28450)
