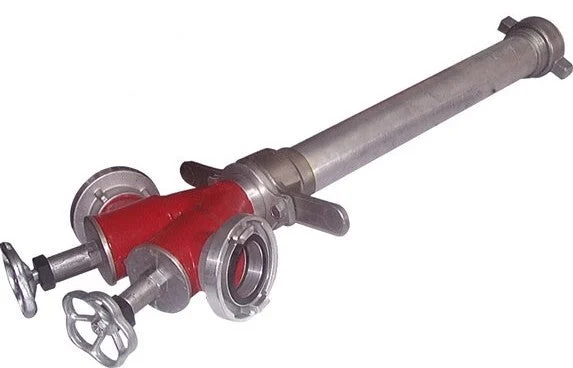

DN 80 2×52-C Standpipe for Underfloor Hydrants Rotatable with Valve

This is a DN 80 standpipe for underfloor hydrants with 2x Storz 52-C connections (lug distance of 66 mm). It has a rotatable head and two valves to control each connection separately. The maximum operating pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -40 to 110 °C (-40 to 230 °F).

Pros:

• Rotatable valve header with 2 valves and 2x 75-B Storz couplings
• Quick connection and release by twisting 120 degrees

Specifications

Storz size : 52-C (Storz)
Storz size (smaller) : 52-C (Storz)
Hydrant features : Rotatable
Lug distance 1 : 66 mm
Lug distance 2 : 66 mm
Max temperature (°C) : 110
Min temperature (°C) : -40
Max pressure at 20 °C (bar) : 16
Nominal inner diameter connection 1 : DN 80
Number of Storz connections : 2
