DN 80 75-B Standpipe for Underfloor Hydrants with Water Meter Shut Off Valve 333 l/min

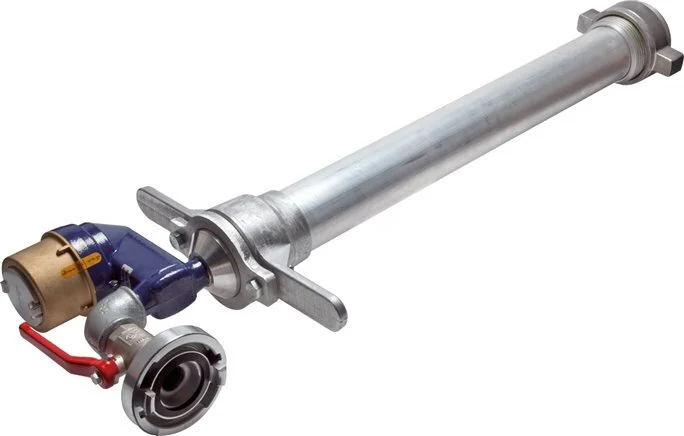

This is a DN 80 standpipe for underfloor hydrants with Storz connection of 75-B (lug distance of 89 mm). It is fitted with a water meter. The maximum operating pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -40 to 110 °C (-40 to 230 °F). The flow rate is 333.3 l/min.

Pros:

• Equipped with a calibrated and certified water meter
• Equipped with a 52-C Storz coupling and a ball valve
• Quick connection and release by twisting 120 degrees

Specifications

Storz size : 75-B (Storz)
Hydrant features : With shut off valve
Lug distance 1 : 89 mm
Max flow rate (l/min) : 333.3
Max temperature (°C) : 110
Min temperature (°C) : -40
Max pressure at 20 °C (bar) : 16
Nominal inner diameter connection 1 : DN 80
Number of Storz connections : 1
